Installing Cover For 2/3-Split Folding Rear Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install seat cover -1- .
1. 1.1. Place the seat cover -1- on the padding -A- and align it with the contour of the padding -B- .

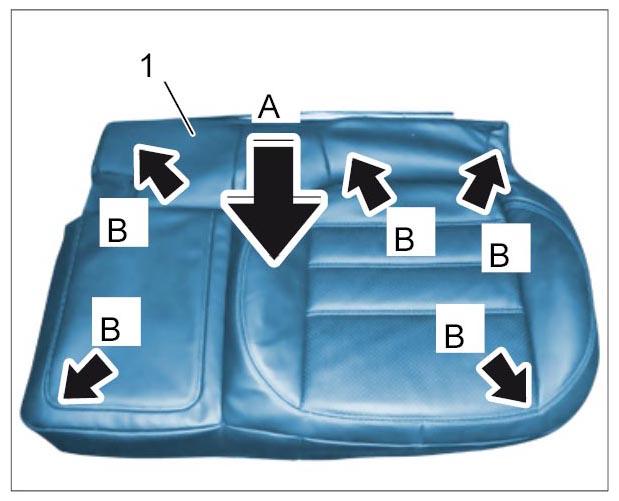

  Fig 1: Installing Seat Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Fasten seat cover to the padding using cushion clip pliers Nr.130 -4- and new cushion clips -2- .

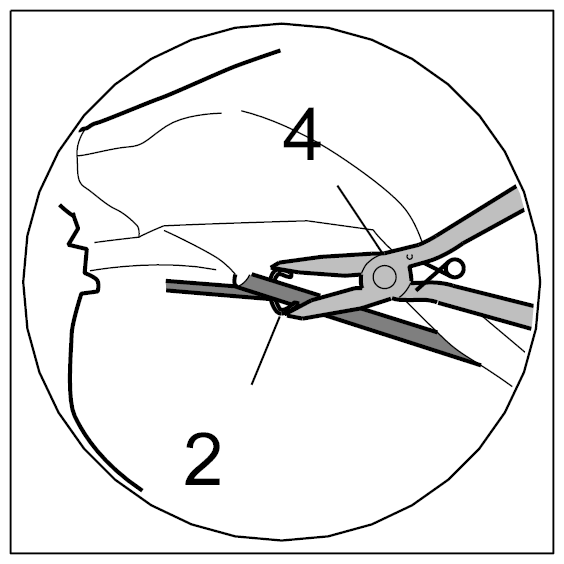

  Fig 2: Fitting Cushion Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Secure the new cushion clips on the seat cover -7- and padding in the specified sequence -1 - 6- .

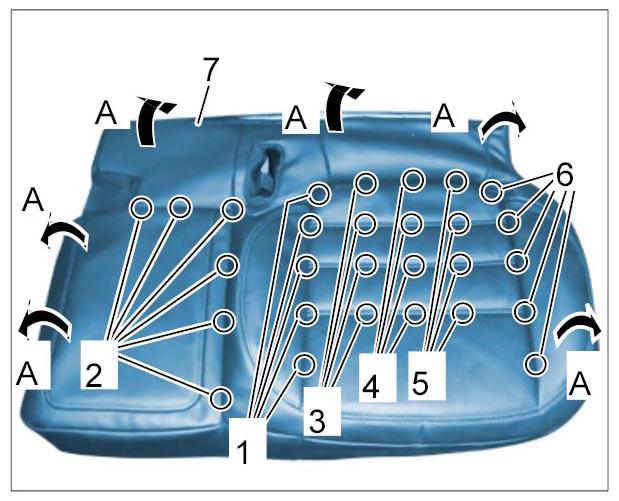

  Fig 3: Securing Cover For 2/3-Split Folding Rear Seat - Step 1
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Pull the outside of the seat cover -7- over the padding -A- .
Secure the outside of the seat cover -2- to the padding from below with new cushion clips using cushion clip pliers Nr.130 at the fastening points -1- .

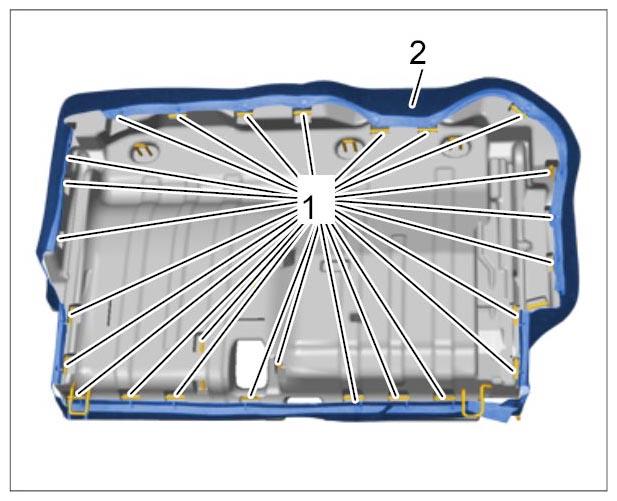

Fig 4: Securing Cover For 2/3-Split Folding Rear Seat - Step 2
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
