Removing Cover For 1/3-Split Folding Rear Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

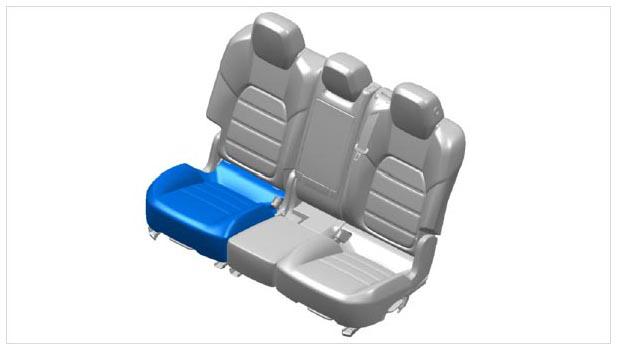

Fig 1: Identifying Cover On 1/3-Split Folding Rear Seat
G09941086Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Place the padding for the 1/3-split folding rear seat on a clean surface with the top side down.
  2. Remove seat cover.
    1. 2.1. Cut the cushion clips -2-  using side cutters → Cutting cushion clips  .

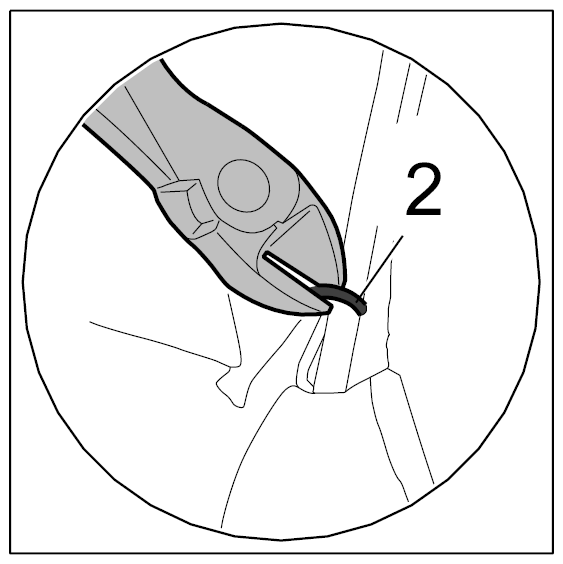

      Fig 2: Cutting Cushion Clips
      G09941087Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 2.2. Start with the outer cushion clips -1-  .

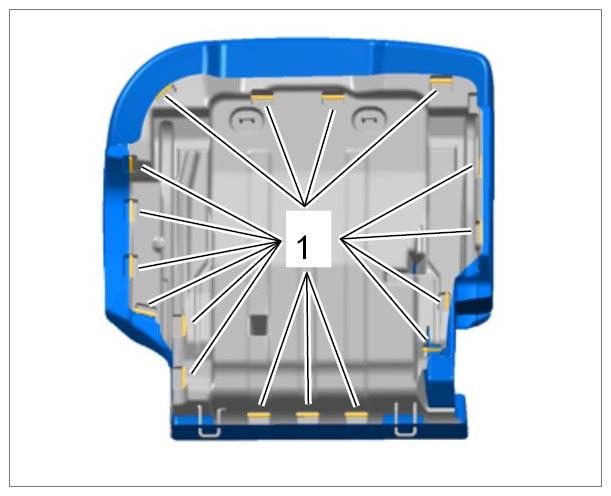

      Fig 3: Identifying Cover For 1/3-Split Folding Rear Seat - Step 1
      G09941088Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 2.3. Fold up the seat cover -1-  at the outside -A-  .

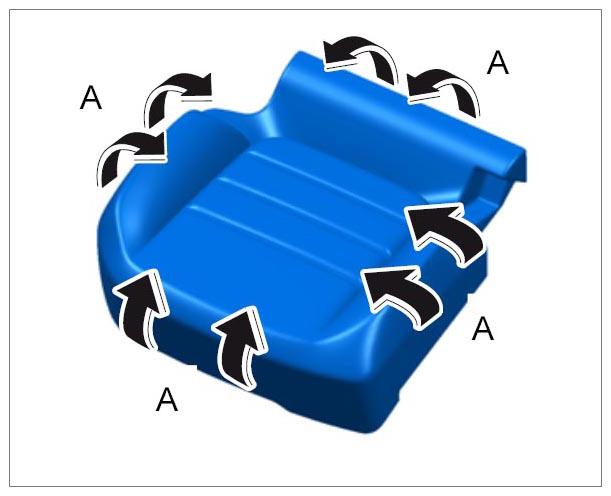

      Fig 4: Removing Cover For 1/3-Split Folding Rear Seat - Step 2
      G09941089Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    4. 2.4. Cut open the inner clips in the specified sequence -2 - 6-  .

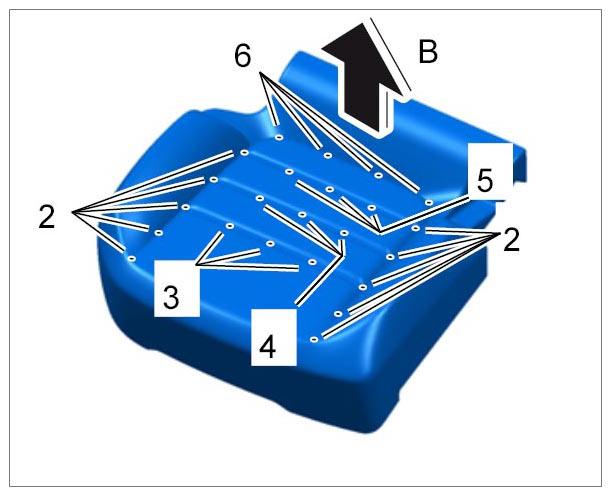

      Fig 5: Removing Cover For 1/3-Split Folding Rear Seat - Step 3
      G09941090Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    5. 2.5. Pull the seat cover -1-  down off the padding -B-  .
    6. 2.6. Remove the remaining pieces of cushion clips.
