Installing Cover For 1/3-Split Folding Rear Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install seat cover.
1. 1.1. Place the seat cover on the padding -A- and align with the contour of the padding.

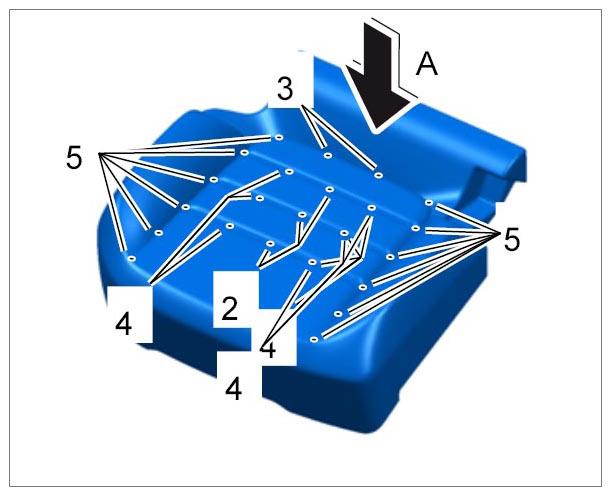

  Fig 1: Securing Cover For 1/3-Split Folding Rear Seat - Step 1
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Using cushion clip pliers Nr.130 -4- , fit new cushion clips -2- in the specified sequence -2 - 5- to fasten the seat cover to the padding → Fitting cushion clips .

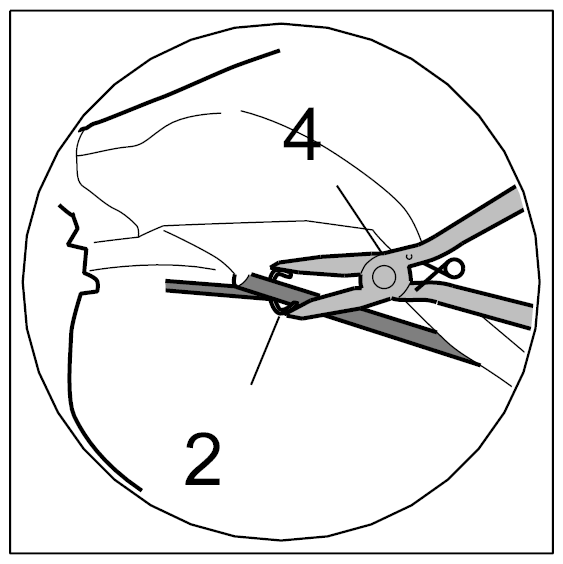

  Fig 2: Fitting Cushion Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten cover for 1/3-split folding rear seat at the outside.
1. 2.1. Pull the outside of the seat cover over the padding -B- .

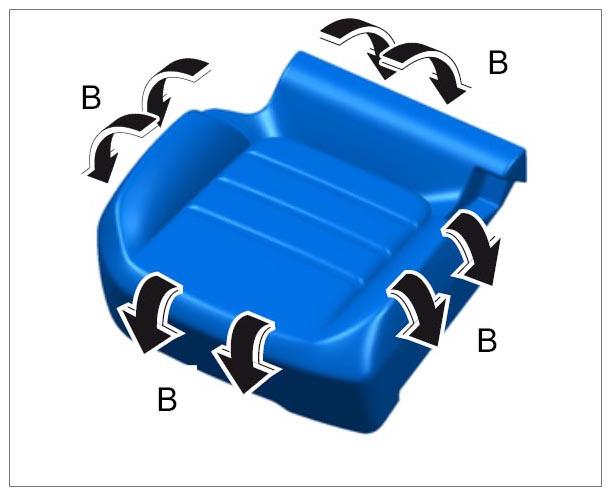

  Fig 3: Securing Cover For 1/3-Split Folding Rear Seat - Step 2
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Using cushion clip pliers Nr.130 , fasten the seat cover at the fastening points -1- on the padding from below with new cushion clips.

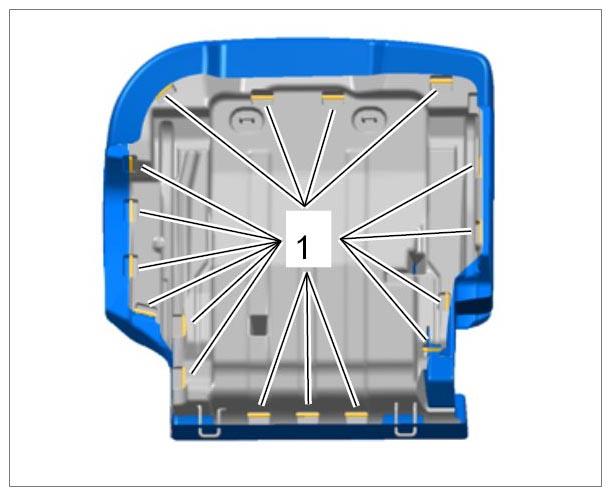

  Fig 4: Identifying Cover For 1/3-Split Folding Rear Seat - Step 2
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
