Removing Padding For 2/3-Split Folding Rear Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

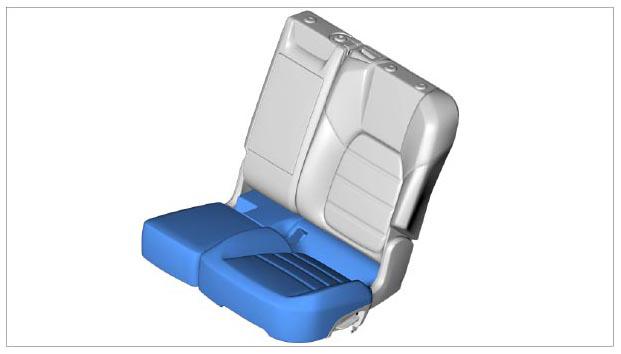

Fig 1: Identifying 2/3-Split Folding Rear Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening grommets on the locking mechanism for the padding on the seat frame will be damaged irreparably during removal. Always replace the fastening grommets during installation.

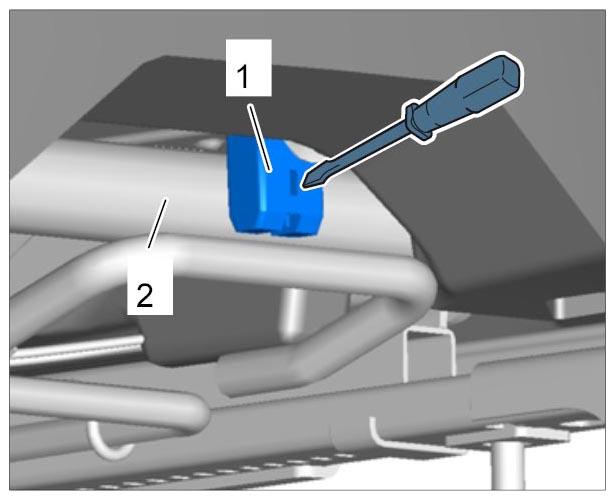

Pierce the fastening grommets -1- on the underside of the seat frame -2- with a screwdriver so that the locking mechanism no longer locks.

Fig 2: Loosening Fastening Grommets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

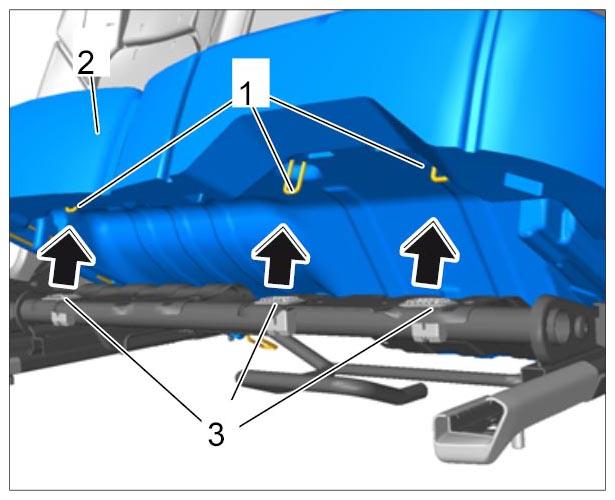

Unclip the retaining eyelets -1- on the padding -2- with a strong upward jerk -arrows- at the front to remove them from the brackets -3- .

Fig 3: Removing Padding For 2/3-Split Folding Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

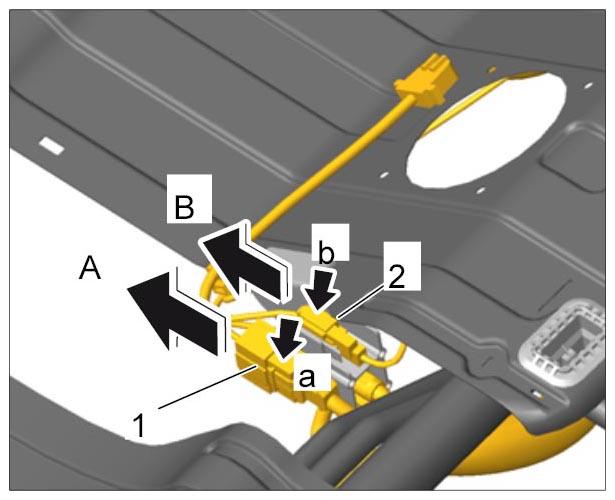

Release the existing electric plug connections -1, 2- (-a, b- ) and pull them off -A, B- .

Fig 4: Electric Plug Connections For 2/3-Split Folding Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the padding for the 2/3-split folding rear seat together with the wire harness.
