Installing Padding For 2/3-Split Folding Rear Seat
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

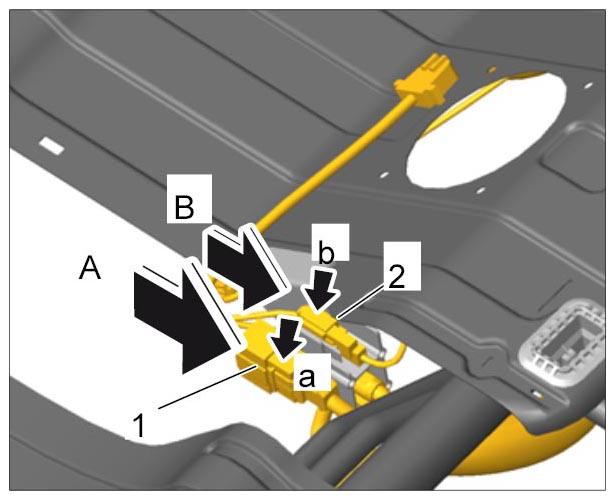

- Plug in existing electric plug connections -1, 2-
for the 2/3-split folding seat -A, B-
and lock them -a, b-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
Fastening grommets on the locking mechanism for the padding on the seat frame will be damaged irreparably during removal. Always replace the fastening grommets during installation.
- Fit new fastening grommets -3- .
- Position the padding -2-
for the 2/3-split folding rear seat.
Check that the padding and the carpet inlay around the belt locks are seated correctly.

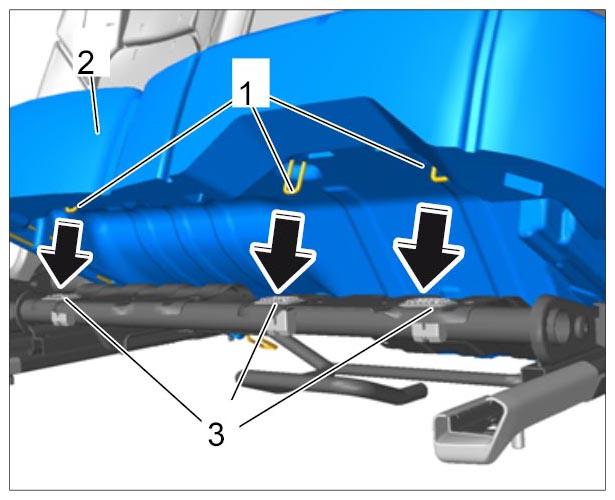

- Clip in the retaining eyelets -1-
on the padding -2-
at the front by pressing them down firmly -arrows-
into the fastening grommets -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The retaining eyelets must engage securely in the fastening grommets.
