Installing Padding For 1/3-Split Folding Rear Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Connect the existing electric plug connections.

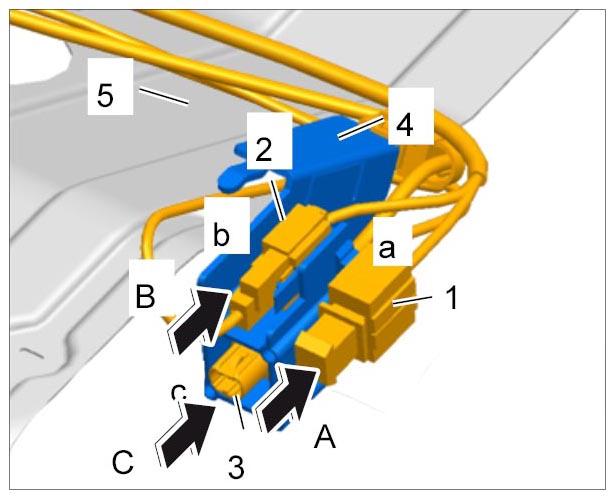

Fig 1: Electric Plug Connections For 1/3-Split Folding Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Plug in electric plug connection -1- for seat heating -A- and lock it -a- .
2. 1.2. Plug in electric plug connection -2- for seat heating connection point -B- and lock it -b- .
3. 1.3. Plug in electric plug connection -3- for side airbag -C- and lock it -c- .
  Information

  Fastening grommets on the locking mechanism for the padding on the seat frame will be damaged irreparably during removal. Always replace the fastening grommets during installation.
Fit new fastening grommets -3- .

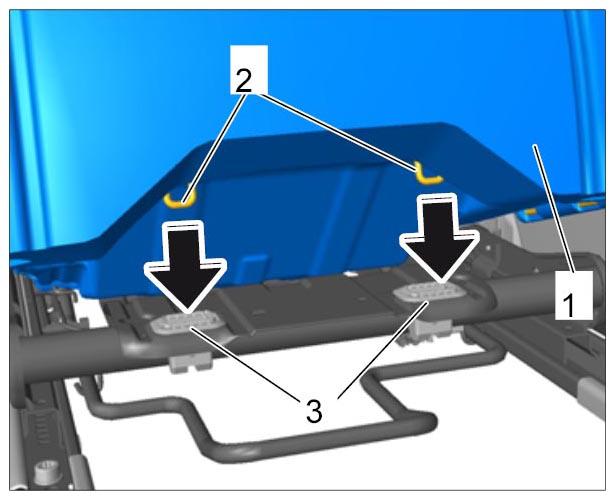

Fig 2: Installing Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the padding -1- for the 1/3-split folding rear seat.
Check that the padding and the carpet inlay on the belt lock are seated correctly.
Clip in the retaining eyelets -2- on the padding -1- at the front by pressing them firmly -arrows- into the fastening grommets -3- .
The retaining eyelets must engage securely in the fastening grommets.
