Securing Cover For Front Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Place cover on the padding and align contour of the padding.
Use cushion clip pliers Nr.130 and new cushion clips to secure the cover on the padding in the specified sequence.

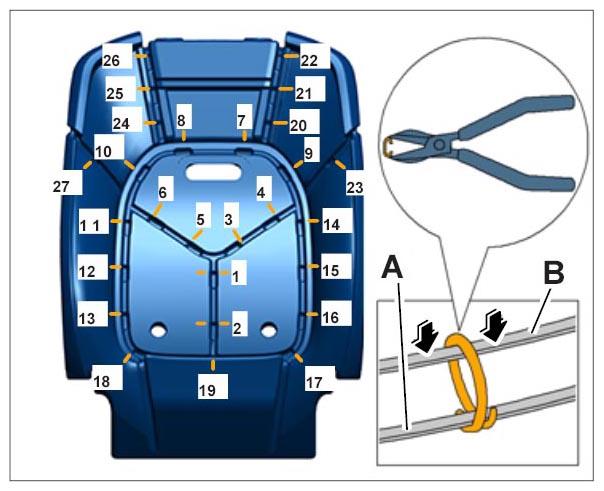

Fig 1: Securing Cover On Padding For Front Backrest (Basic/Comfort)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

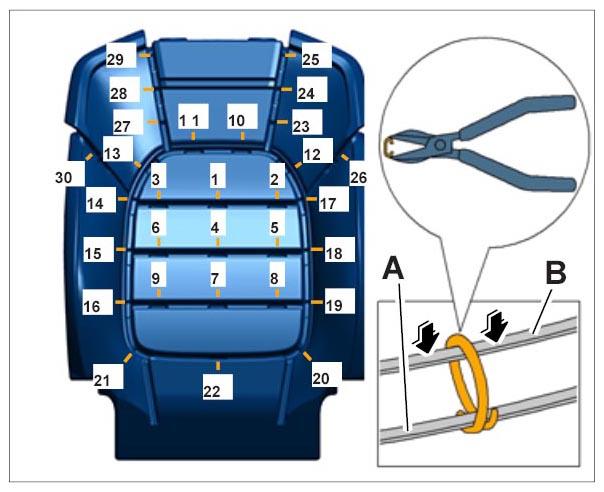

Fig 2: Securing Cover On Padding For Front Backrest (Sport)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
