Removing Cover For Front Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

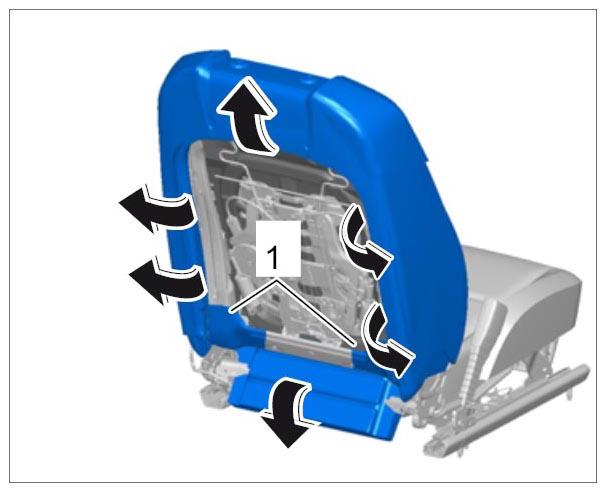

Disengage cover from the cut-out for the backrest cover all the way around -arrow- .
Pull out plastic rivets -1- .

Fig 1: Detaching Cover From Cut-Out For Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

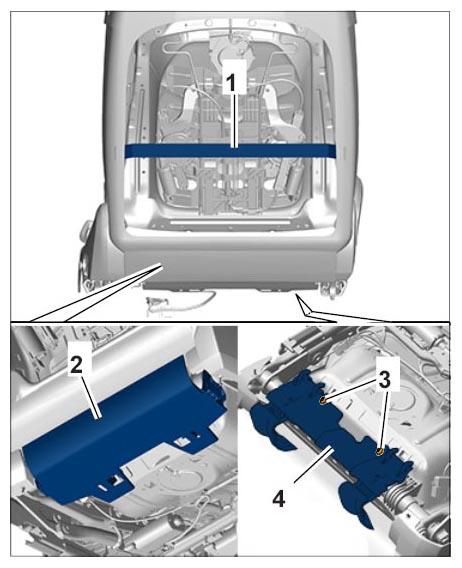

Disengage restraining strap -1- for the cover at the left and right.
Unclip rear seat cover -2- by pulling it downwards.
Loosen fastening screws -3- for ISOFIX clips -4- .

Fig 2: Identifying Restraining Strap Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

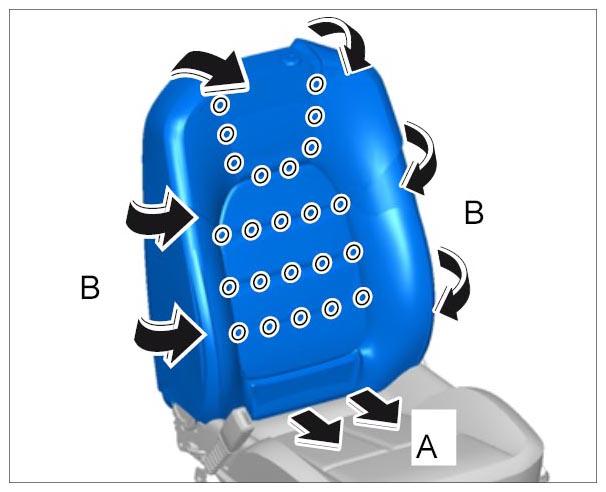

Pull the bottom of the cover forward between the backrest and seat -A- .

Fig 3: Loosening Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

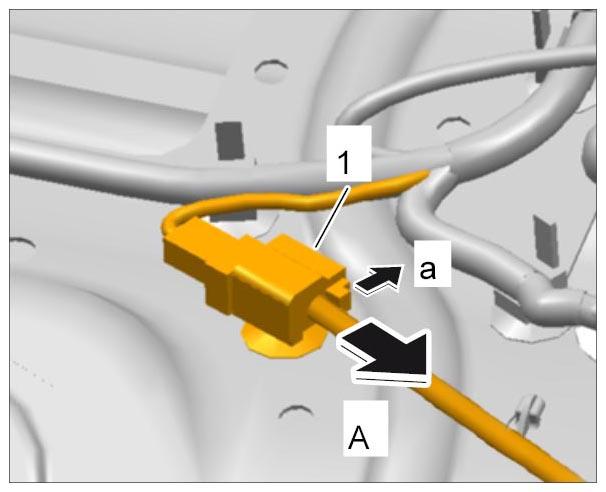

Release electric plug connection for seat heating (if installed) -1- (-a- ) and disconnect it -A- .

Fig 4: Disconnecting Connector For Seat Heating
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cut tie-wrap and guide out electric wire harness for seat heating.

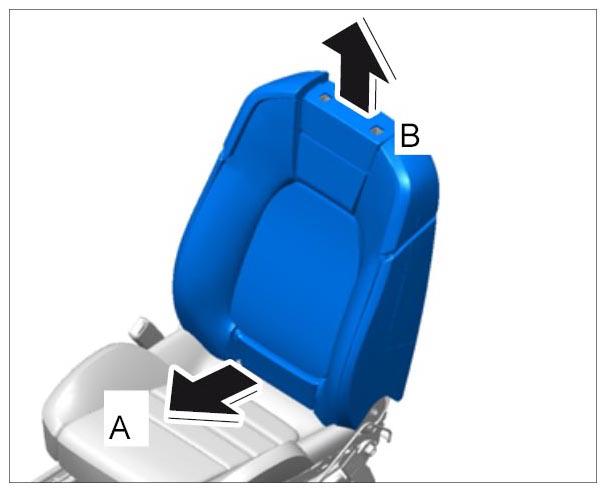

Pull padding out between the seat and backrest -A- .

Fig 5: Removing Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully guide out the top of the cover at the guides for the headrest.
Carefully lift padding with cover up and remove it -B- .
