Installing Cover For Front Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Fasten covering to the padding, starting from the middle .
Do so in the following sequence: middle, top/bottom, left/right .

Information

Replace expansion rivets and fixing clips during installation and do not re-use them.

Pull the cover and padding over the upper part and side bolsters -A- .
Pull the cover and padding back between the seat surface and backrest -B- .
Carefully guide in the top of the cover at the guides for the headrest.

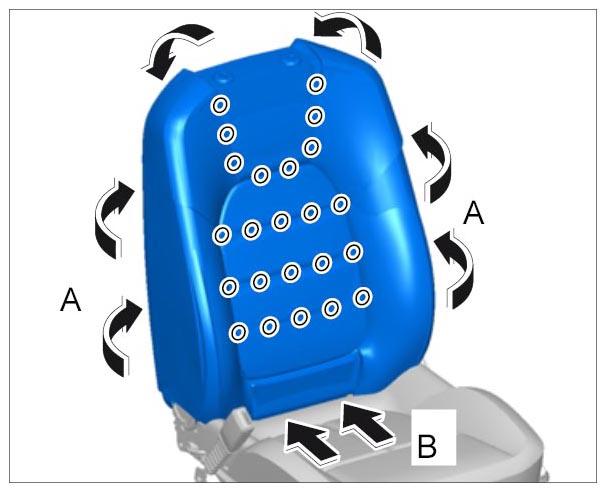

Fig 1: Fastening Backrest Cover To Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection for seat heating (if installed) -1- (-A- ) until the connector engages securely.
Guide in wire harness for heated seats and secure with a tie-wrap.

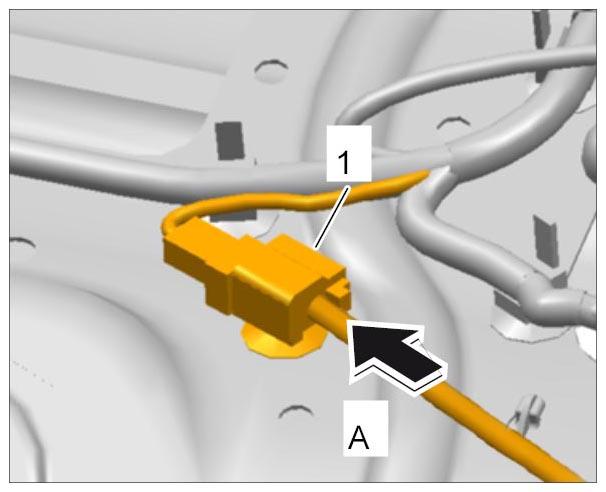

Fig 2: Plugging In Connector For Seat Heating
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit plastic rivets -1- .

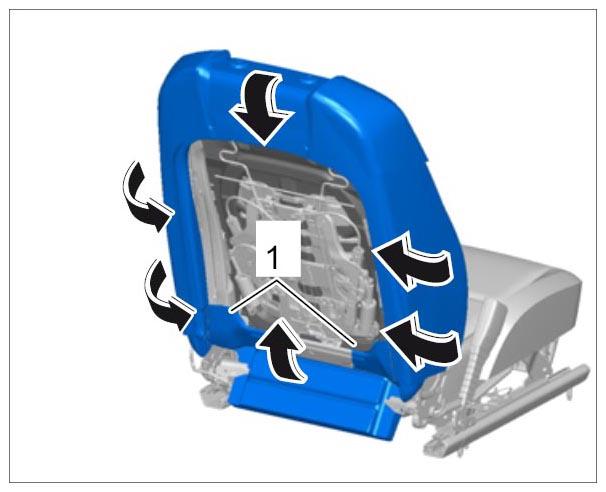

Fig 3: Engaging Cover In Cut-Out For Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage the cover in the cut-out for the backrest cover all the way around -arrow- .
Engage restraining strap -1- for the cover at the left and right.
Clip in rear seat cover -2- .
Tighten fastening screws -3- for ISOFIX clips -4- .

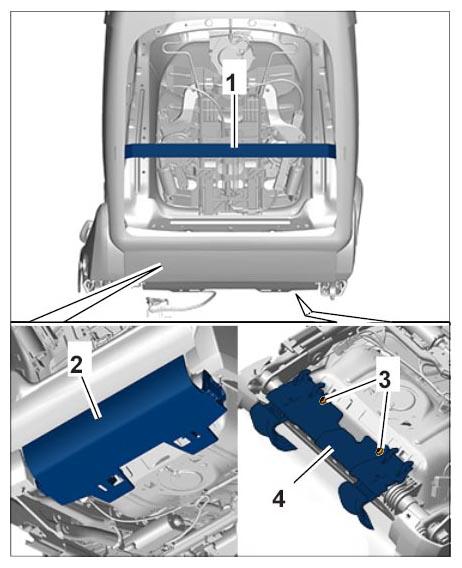

Fig 4: Identifying Restraining Strap And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
