Removing Suction Fan For Backrest Surface

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

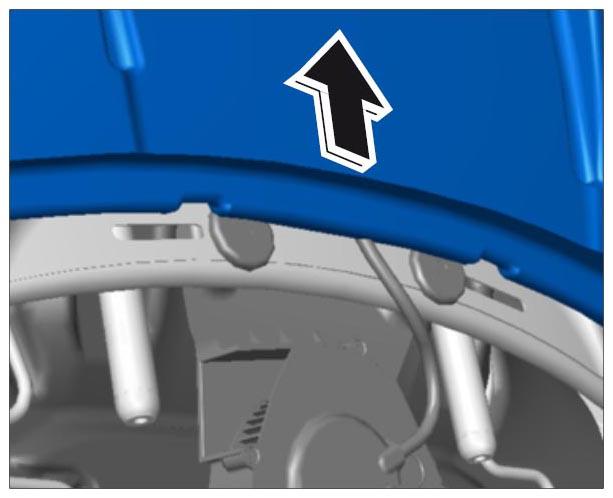

  1. Detach cover for rear backrest at the top -arrow-  .
    Fig 1: Disengaging Cover
    G09941038Courtesy of PORSCHE CARS NORTH AMERICA, INC.

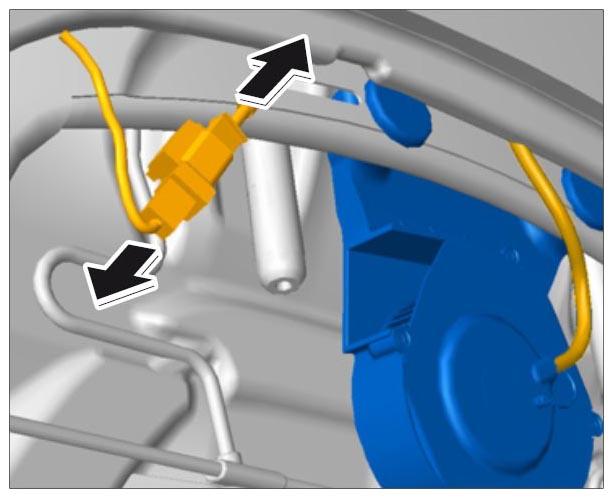

  2. Disconnect electric plug connection for suction fan -arrows-  .
    Fig 2: Disconnecting Connector For Suction Fan
    G09941039Courtesy of PORSCHE CARS NORTH AMERICA, INC.

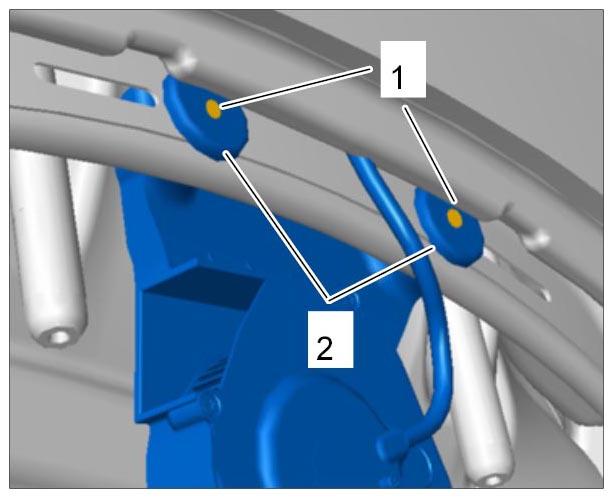

  3. Remove fastenings for suction fan.
    Fig 3: Identifying Expansion Rivets
    G09941040Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Press plastic pins -1-  through the expansion rivets -2-  using a suitable mandrel.
    2. 3.2. Remove expansion rivets -2-  by pulling them towards the rear.

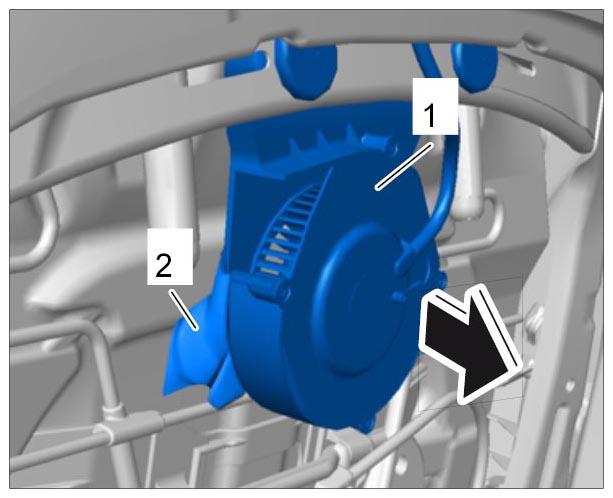

  4. Pull suction fan -1-  out of the rubber flange (air guide) -2-  (-arrow-  ) and remove it by pulling it towards the rear.
    Fig 4: Removing Suction Fan
    G09941041Courtesy of PORSCHE CARS NORTH AMERICA, INC.
