Installing Suction Fan For Backrest Surface

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace expansion rivets and fixing clips during installation and do not re-use them.

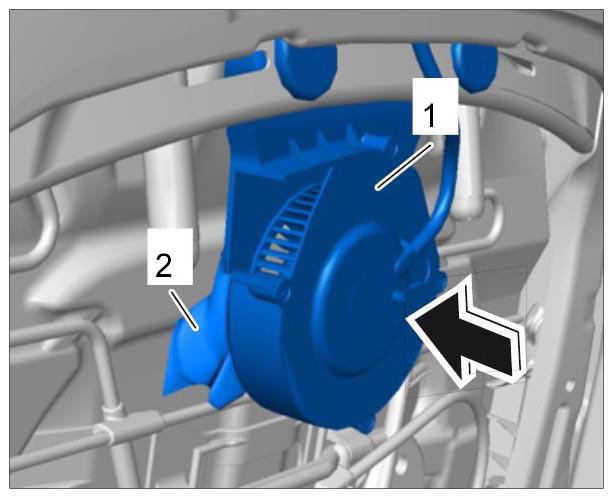

Position suction fan -1- on the backrest frame and insert it into the rubber flange (air guide) -2- (-arrow- ).

Fig 1: Positioning Suction Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

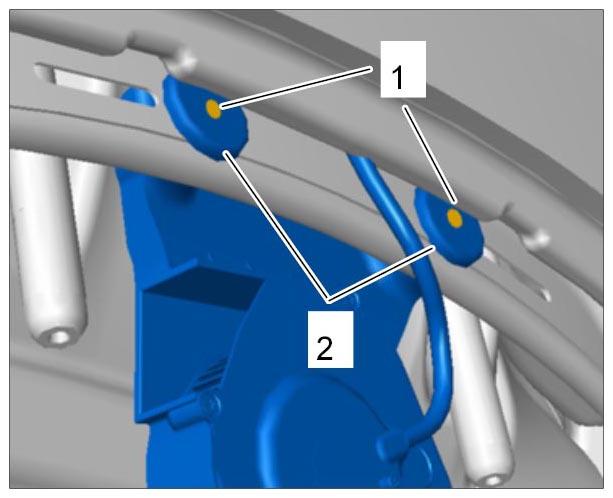

Secure the suction fan on the backrest frame with two plastic expansion rivets -2- .

Fig 2: Identifying Expansion Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Fit expansion rivets -2- .
2. 2.2. Fit plastic pins -1- on the expansion rivets -2- and press them through using a mandrel.

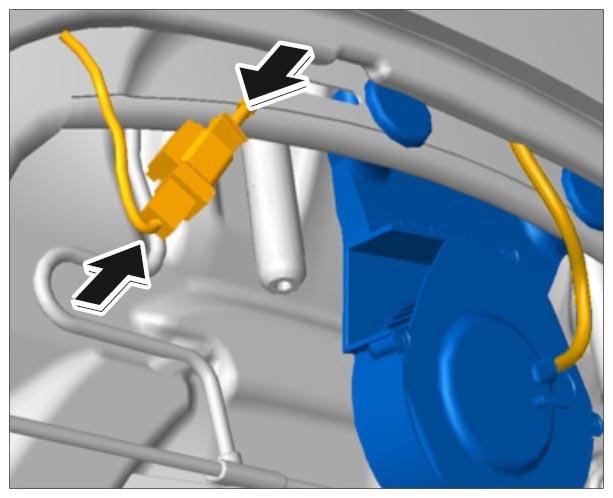

Plug in electric plug connection for suction fan -arrows- .

Fig 3: Plugging In Connector For Suction Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

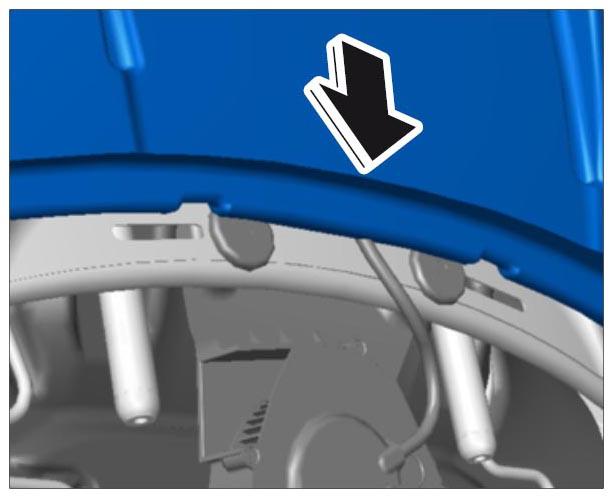

Attach cover for rear backrest at the top -arrow- .

Fig 4: Attaching Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
