Removing Cover For Front Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

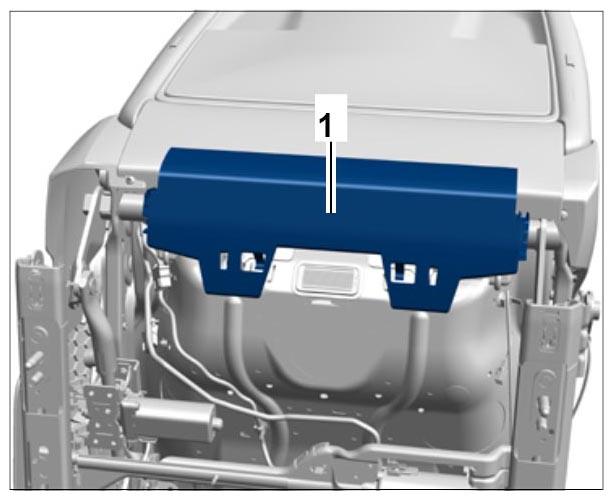

Unclip and remove plastic cover -1- on the seat frame.

Fig 1: Removing Plastic Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

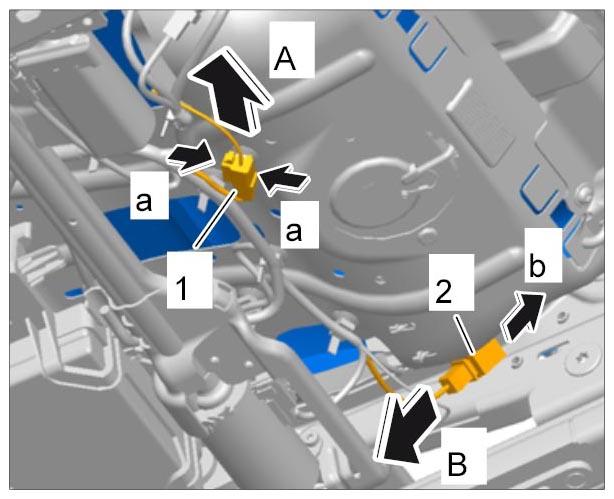

On vehicles with heated seats: Disconnect connector for seat heating.

Fig 2: Disconnecting Connector For Seat Heating
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Release electric plug connection for seat heating -1- (-a- ) and disconnect it -A- .
2. 2.2. Release electric plug connection for seat heating for seat-surface extension -2- (-b- ) and disconnect it -B- .

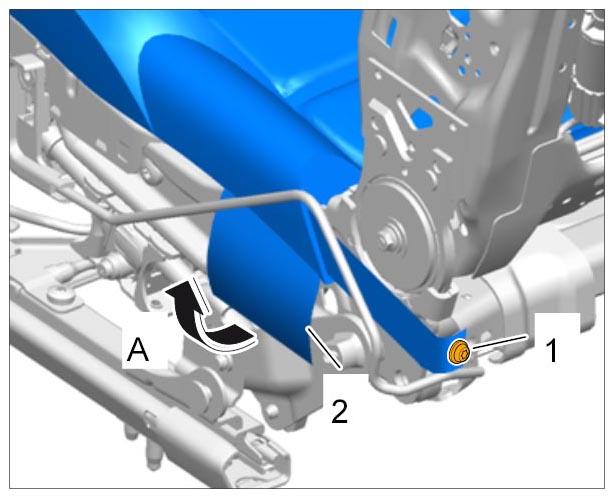

Press in expansion rivet pin -1- and pull out expansion rivet.

Fig 3: Detaching Rear Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach the cover at the rear -2- (-A- ).

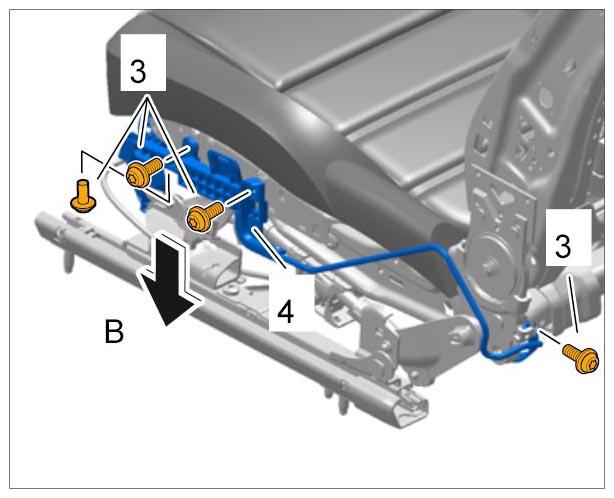

Unscrew fastening screws -3- and pull the bracket -4- down out of the catches -B- .

Fig 4: Loosening Bracket At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

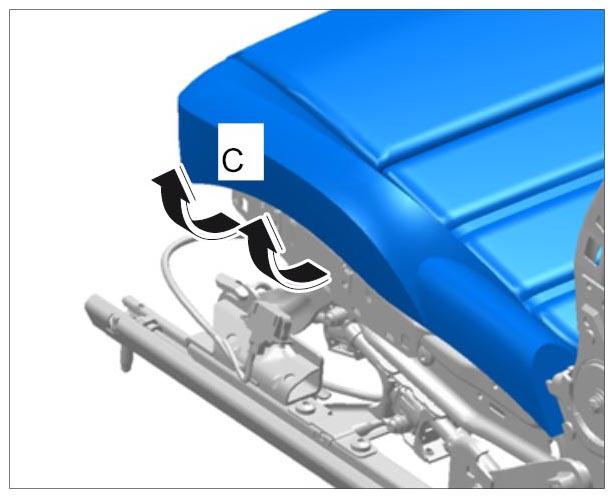

Disengage the cover at the sides -C- .

Fig 5: Disengaging Cover At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

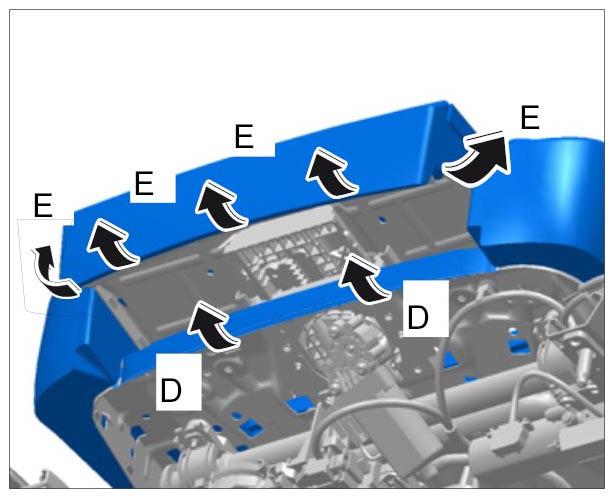

Disengage the cover at the front -D- .

Fig 6: Disengaging Cover At Front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

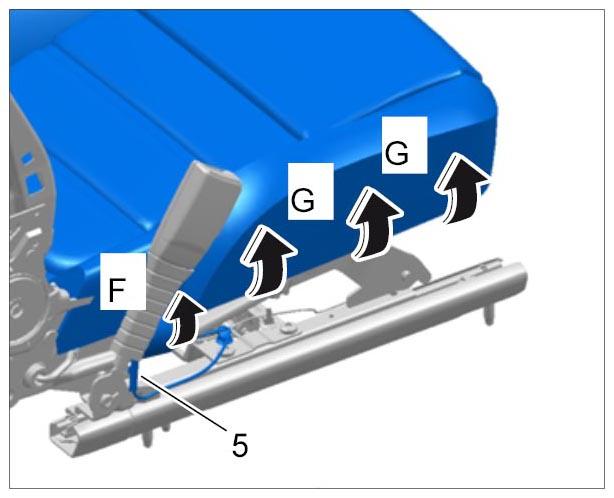

Press in expansion rivet pin -5- and pull out expansion rivet.

Fig 7: Detaching Cover At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage the cover at the rear -F- .
Disengage the cover at the sides -G- .

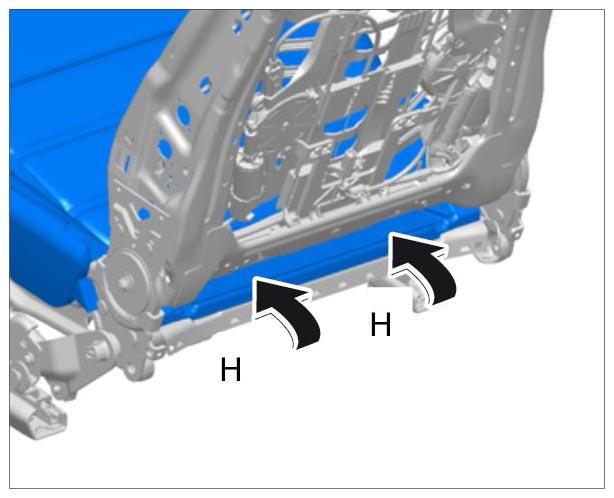

Disengage the cover at the rear -H- .

Fig 8: Disengaging Cover At Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

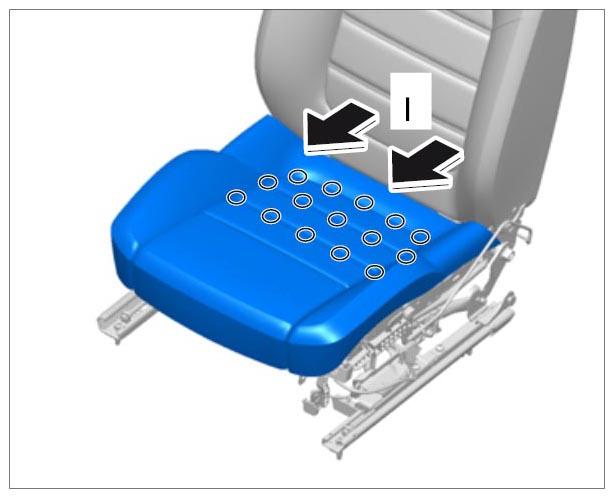

Pull the cover forward between the padding for the seat and backrest -I- .

Fig 9: Pulling Cover Forward
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

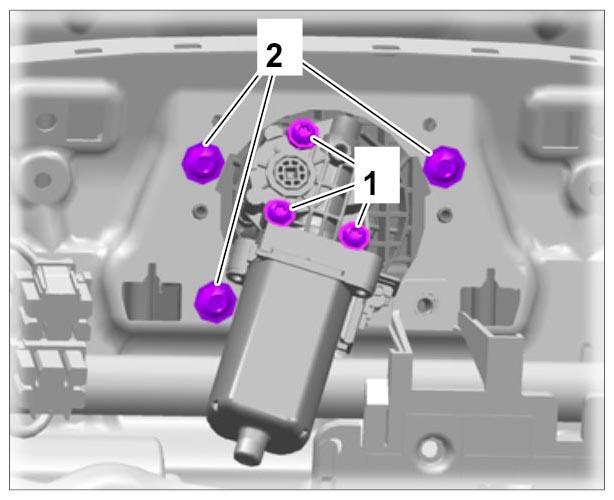

Unscrew screws -1- and remove electric motor for seat-surface extension.
Unscrew screws -2- and remove seat-surface extension from the seat frame.

Fig 10: Identifying Seat-Surface Extension Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover for seat together with the padding and seat-surface extension from the seat frame.
