Securing Cover For Front Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place cover on the padding for the front seat and align contour with the padding.
  2. Secure the cover to the padding using cushion clip pliers Nr.130  and new cushion clips.

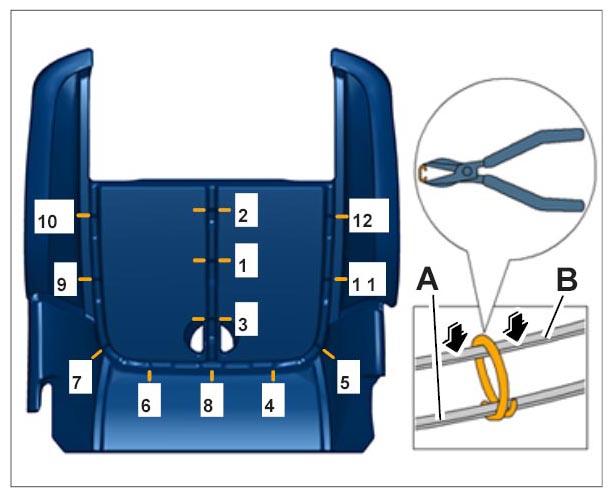

    Fig 1: Securing Cover For Front Seat To Padding (Basic/Comfort)
    G09941013Courtesy of PORSCHE CARS NORTH AMERICA, INC.

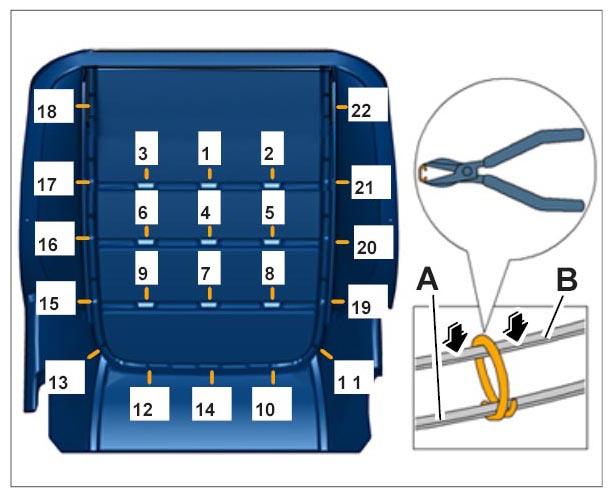

    Fig 2: Securing Cover For Front Seat To Padding (Sport)
    G09941014Courtesy of PORSCHE CARS NORTH AMERICA, INC.
