Loosening Cover For Front Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place padding for front seat on a clean surface.
  2. Cut open cushion clips using side cutters and remove the cover from the padding.

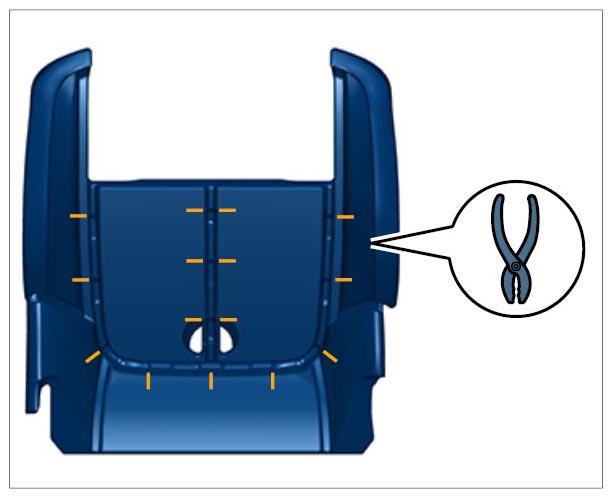

    Fig 1: Detaching Padding For Front Seat From Cover (Basic/Comfort)
    G09941011Courtesy of PORSCHE CARS NORTH AMERICA, INC.

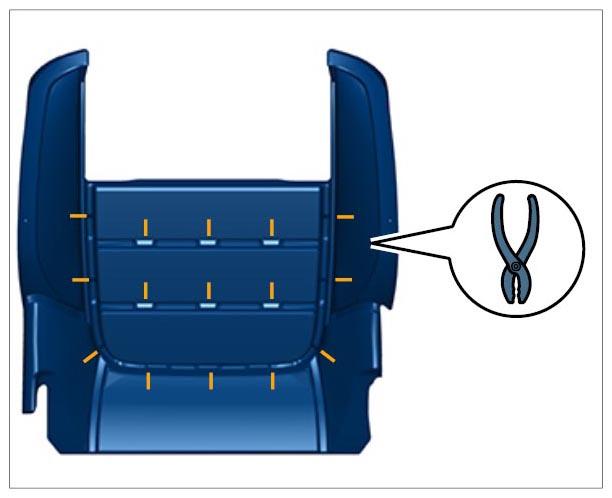

    Fig 2: Detaching Padding For Front Seat From Cover (Sport)
    G09941012Courtesy of PORSCHE CARS NORTH AMERICA, INC.
