Replacing Padding For Front Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. On vehicles with seat-surface extension:  Remove padding for seat-surface extension.
  2. Cut open cushion clips -circles-  using side cutters and remove the cover from the padding.
    Fig 1: Removing Cushion Clips
    G09941007Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit the cover and align it with the contour of the padding.

    Information

    • Fasten covering to the padding, starting from the middle  .
    • Do so in the following sequence: middle, top/bottom, left/right  .
  4. Fasten the cover to the padding using cushion clip pliers Nr.130  and new cushion clips -circles-  .

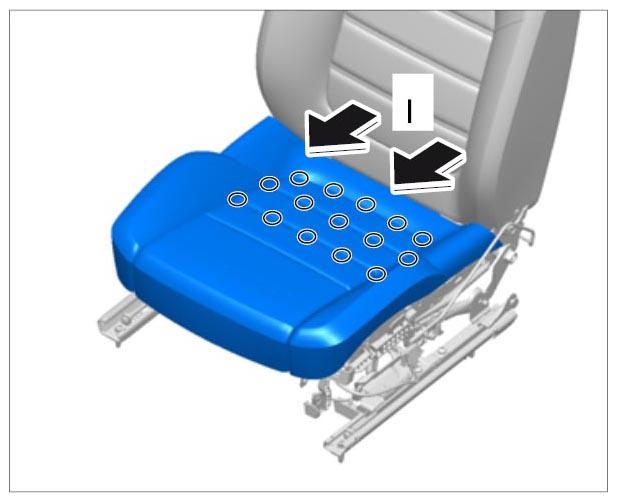

    Fig 2: Fitting Cushion Clips
    G09941008Courtesy of PORSCHE CARS NORTH AMERICA, INC.
