Removing Padding For Front Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If occupant detection components (installed for country equipment USA/Canada/Mexico) must be replaced, the repair kit comprising padding, occupant detection control unit and pressure sensor mat must always be replaced as a complete unit .

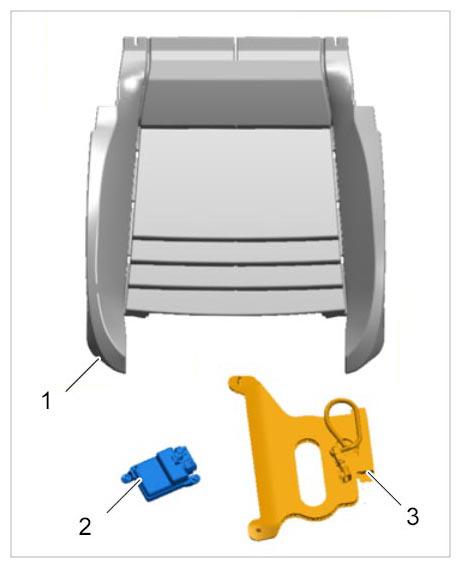

The spare parts are grouped in a repair kit (comprising padding -1-, occupant detection control unit -2- and pressure sensor mat -3-), which must always be replaced as a complete unit .

Padding
Occupant detection control unit
Pressure sensor mat

Fig 1: Identifying Occupant Detection Repair Kit Contents
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A mixed installation , e.g. "old" pressure sensor mat and "new" control unit, is not permitted .

The padding, pressure sensor mat and occupant detection control unit are calibrated together by the manufacturer and must therefore only be replaced as a complete unit.

The occupant detection control unit does not have to be coded.

The seat padding is removed together with the seat cover. → 741319 REMOVING AND INSTALLING COVER FOR FRONT SEAT
