Removing Suction Fan For Seat Surface

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

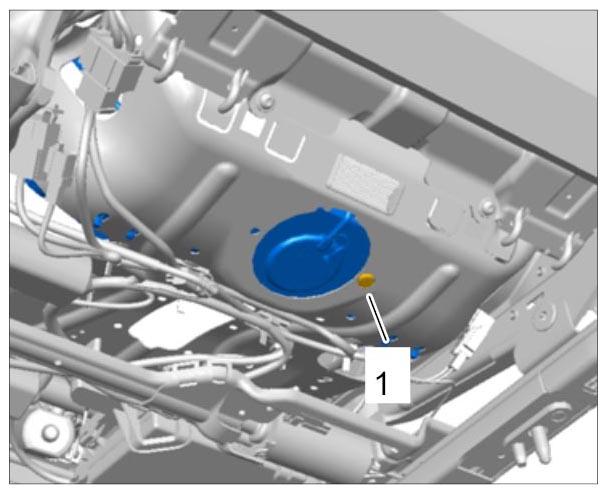

Remove expansion rivet -1- .

Fig 1: Identifying Expansion Rivet
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

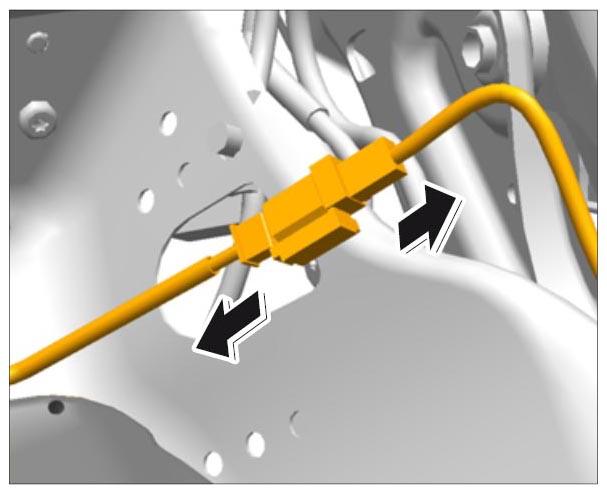

Disconnect electric plug connection -arrows- for suction fan.

Fig 2: Disconnecting Connector For Suction Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

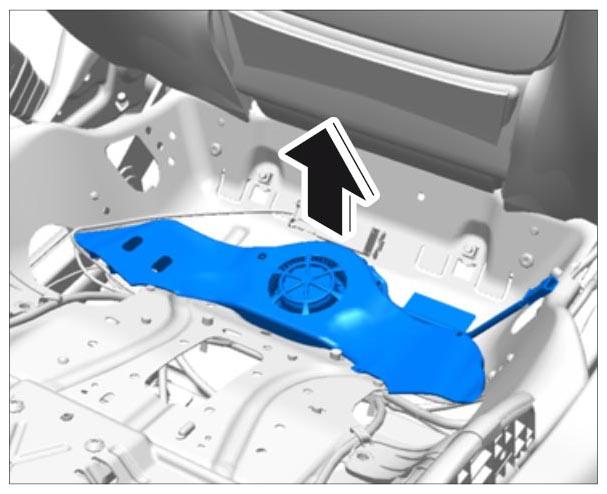

Unclip the suction fan together with the bracket and remove it by pulling it upwards.

Fig 3: Removing Suction Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
