Installing Suction Fan For Seat Surface

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace expansion rivets and fixing clips during installation and do not re-use them.

Position suction fan together with the bracket on the seat surface.

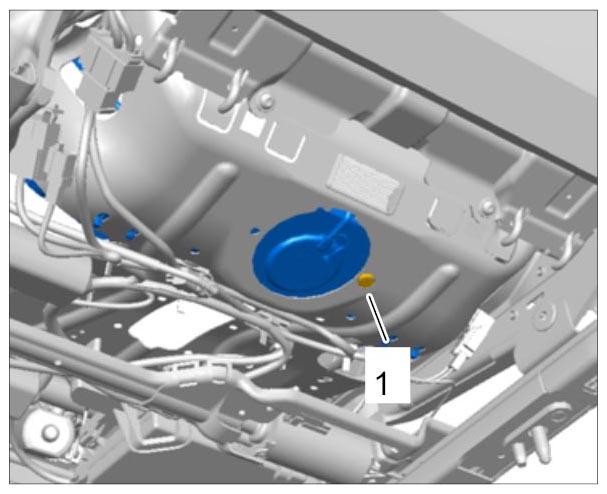

Clip in the bracket and secure the suction fan on the seat surface with an expansion rivet -1- .

Fig 1: Identifying Expansion Rivet
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
31

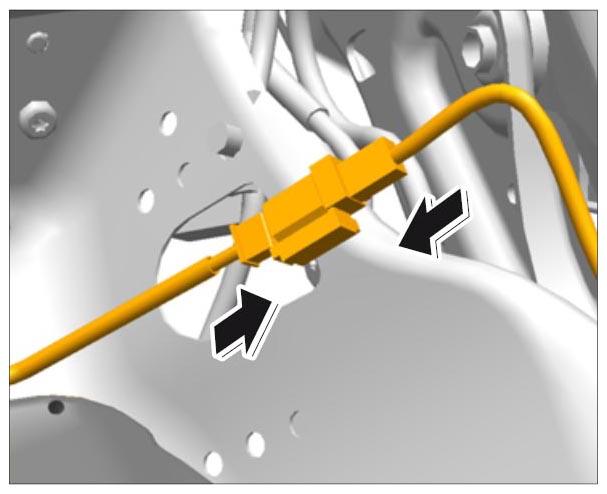

Plug in electric plug connection -arrows- for suction fan.

Fig 2: Plugging In Connector For Suction Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
