Removing Front Seat-Surface Extension

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Swivel seat-surface extension -1-  upwards -arrow A-  .
  2. Move the slide -2-  into the center of the seat-surface extension -arrow B-  .

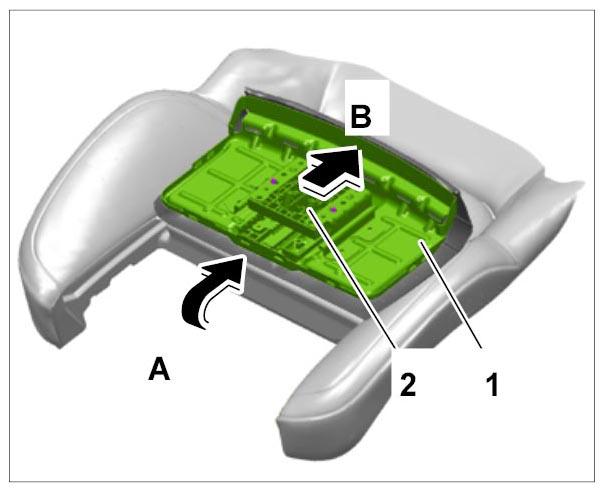

    Fig 1: Positioning Seat-Surface Extension
    G09940997Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip fixing clips -1-  for the cover all the way around.
  4. Guide seat-surface extension out of the cover -2-  and remove it.

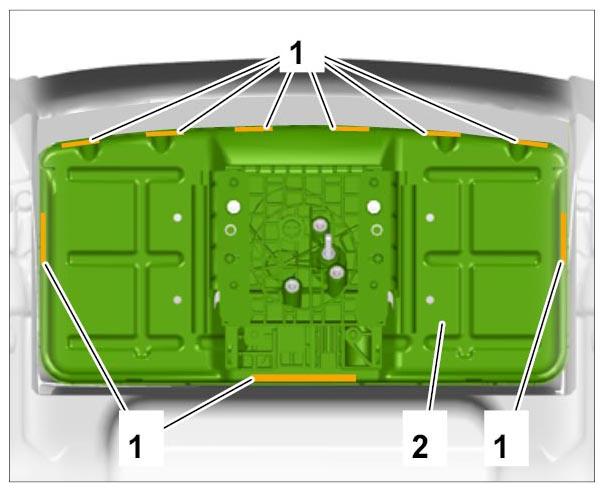

    Fig 2: Identifying Seat-Surface Extension Cover And Clip
    G09940998Courtesy of PORSCHE CARS NORTH AMERICA, INC.
