Removing Air Guide For HV Battery

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

When removing and installing the air guides, make sure that the foam seals on the air guides are not damaged and seal the connection points all the way around.

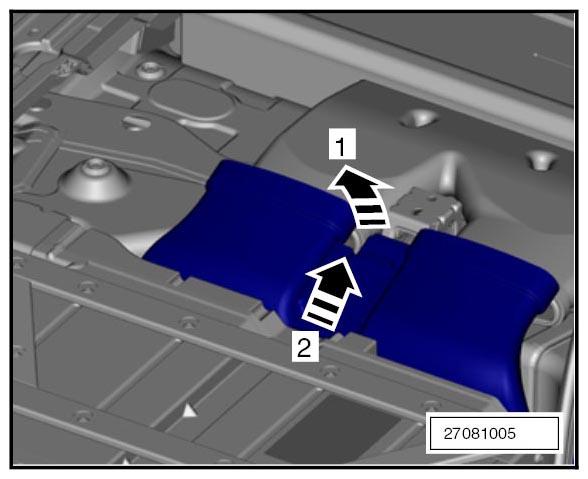

Lift up air guide for HV battery -1- and pull it out of the air guide -2- .

Fig 1: Removing Exhaust Plenum
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove KESSY antenna from air guide for HV battery.

Information

The HV battery is cooled through the air guide. Air from the luggage compartment is guided to the battery through the HV battery fans. The condenser in the air guide is used to cool or heat the battery. The temperature that is transferred to the HV battery is the same as the temperature that is set on the climate control panel in the passenger compartment.

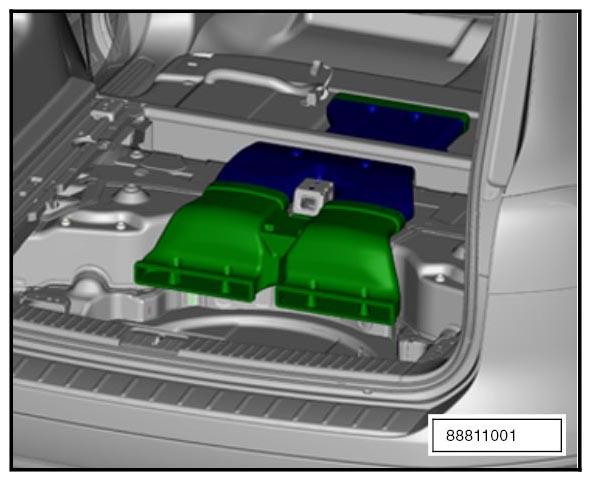

Fig 1: Identifying HV Battery Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When removing and installing the air guides, make sure that the foam seals on the air guides are not damaged and seal the connection points all the way around.

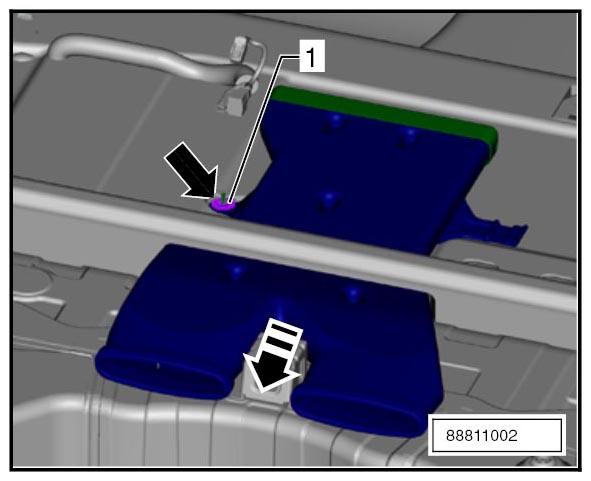

Unscrew fastening nut -1- .

Fig 2: Loosening Nut And Removing Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift up the air guide and pull it out to the rear (direction of travel) through the carpeted floor.
