Installing Air Guide For HV Battery

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Affix KESSY antenna on air guide for HV battery. There is double-sided adhesive tape on the antenna.
Information

When removing and installing the air guides, make sure that the foam seals on the air guides are not damaged and seal the connection points all the way around.

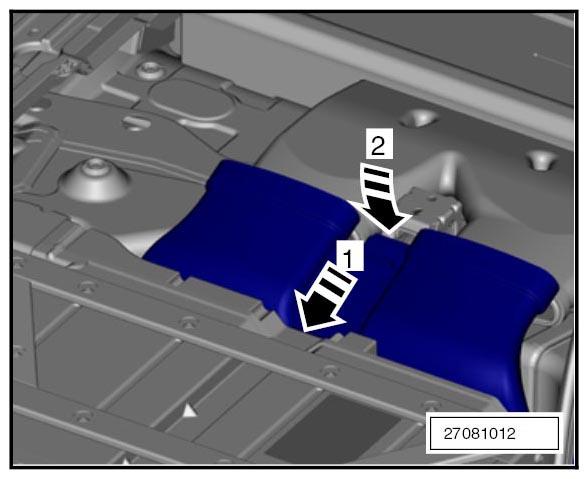

Fit air guide for HV battery on the high-voltage battery -1- and slide it into the air guide -2- .

Fig 1: Installing Exhaust Plenum
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When removing and installing the air guides, make sure that the foam seals on the air guides are not damaged and seal the connection points all the way around.

Slide the air guide forward through the carpeted floor from the rear.
Place the air guide on the carpeted floor and secure with the fastening nut.
