Removing Fan For HV Battery
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
Use new fastening screws.

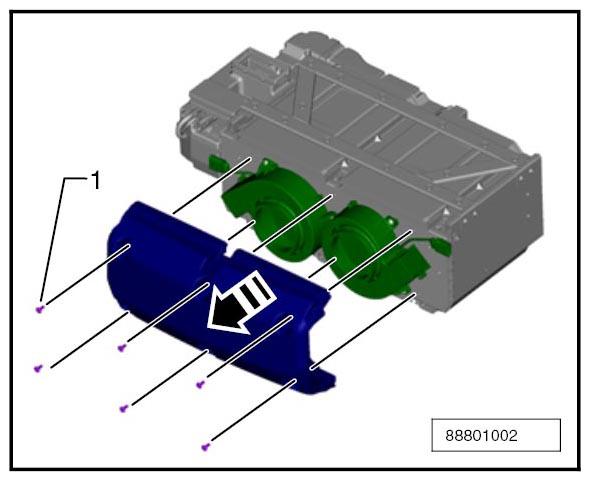

- Unscrew the six fastening screws -1-
for the exhaust-air housing.
Information
When removing and installing the air guides, make sure that the foam seals on the air guides are not damaged and seal the connection points all the way around.
- Remove exhaust-air housing from the high-voltage battery.
- Pull the connector for the fan to be removed out of its connector holder on the high-voltage battery.

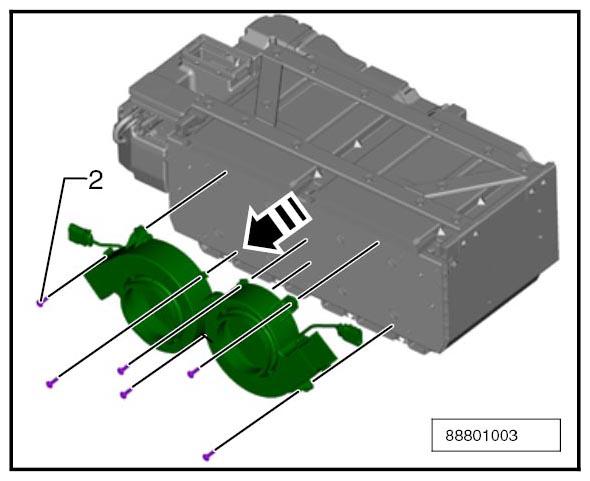

- Unscrew the three fastening screws -2- for the relevant fan and remove the fan from the high-voltage battery.
