Installing Fan For HV Battery

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Use new fastening screws.

Position the relevant fan on the high-voltage battery and secure with the three fastening screws -2- . → Tightening torque: 10 Nm (7.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.) .

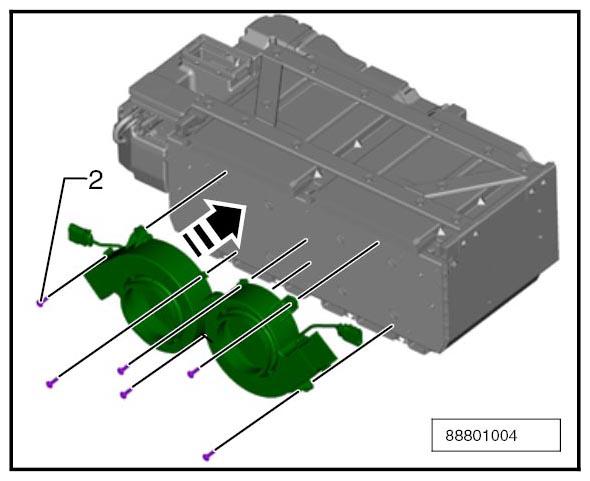

Fig 1: Installing Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage the relevant fan connector in the connector holder on the high-voltage battery.
Information

Use new fastening screws.
Position the exhaust-air housing on the high-voltage battery and secure with the six fastening screws -1- . → Tightening torque: 10 Nm (7.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.) .

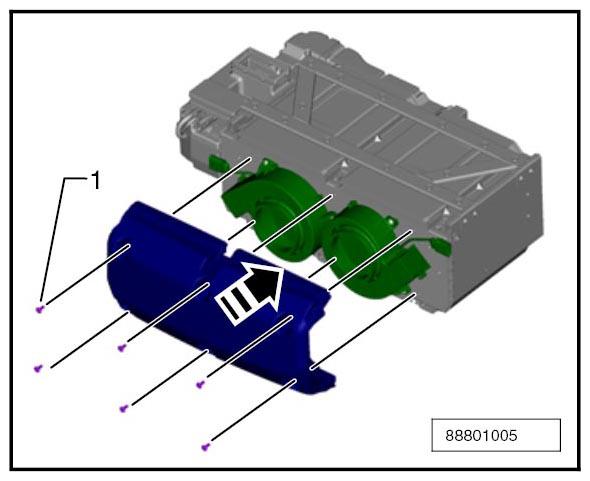

Fig 2: Installing Exhaust-Air Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
