Removing Expansion Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refrigerant

Danger of free

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

Information

The refrigerant connections must be closed off immediately using suitable stoppers once the refrigerant lines have been removed.

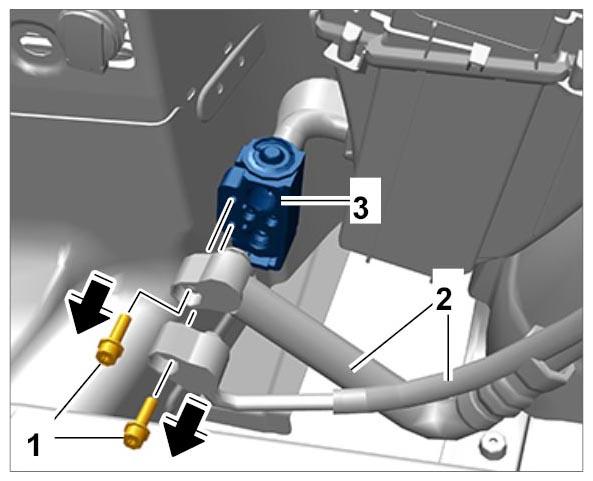

Unscrew and remove fastening screws -1- for refrigerant lines -2- at the expansion valve -3- .

Fig 1: Identifying Fastening Screws For Refrigerant Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull refrigerant lines out of the expansion valve and close off using stoppers.

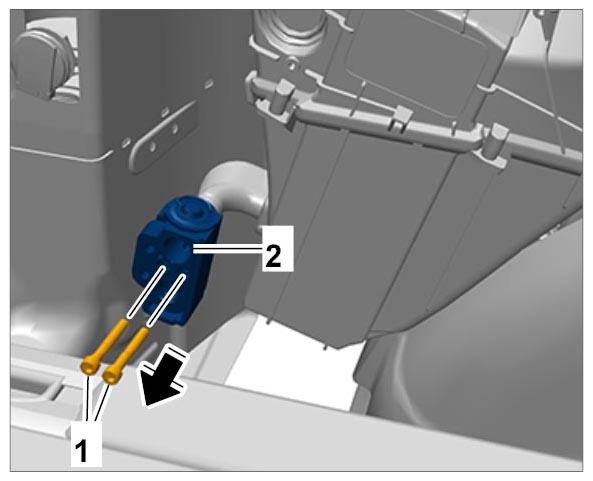

Unscrew fastening screws -1- for the expansion valve -2- and remove expansion valve.

Fig 2: Removing Expansion Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
