Installing Expansion Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before the expansion valve is re-installed, the O-rings of the refrigerant lines must be checked for damage and replaced if necessary .
Wet the O-rings of the refrigerant lines with refrigerant oil .

Carefully push expansion valve -2- onto the refrigerant lines from the evaporator without tilting it.
Tighten fastening screws -1- to the prescribed tightening torque. Tightening torque 9 Nm (6.5 ftlb.)

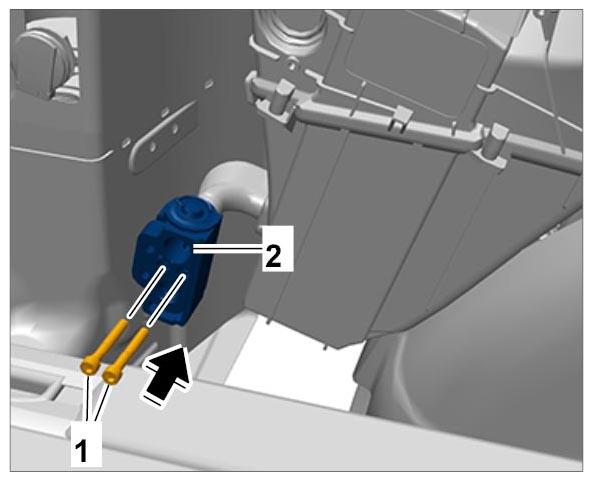

Fig 1: Installing And Securing Expansion Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully push the refrigerant lines -2- onto the expansion valve -3- (do not tilt) and tighten fastening screws -1- to the prescribed tightening torque. Tightening torque 12 Nm (9 ftlb.)

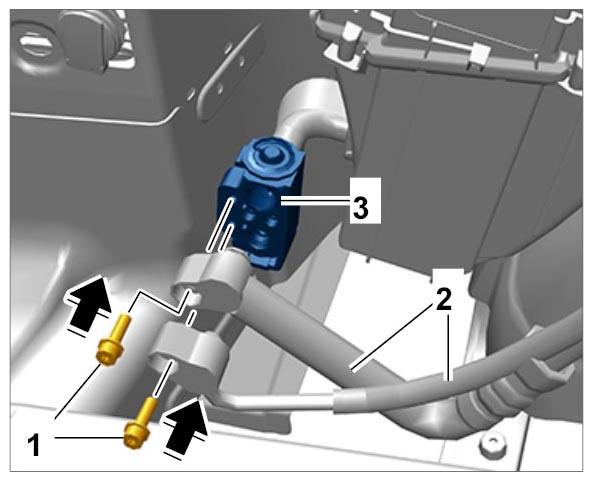

Fig 2: Identifying Fastening Screws For Refrigerant Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
