Removing Fan Motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect connector -1-  above the additional air conditioner.

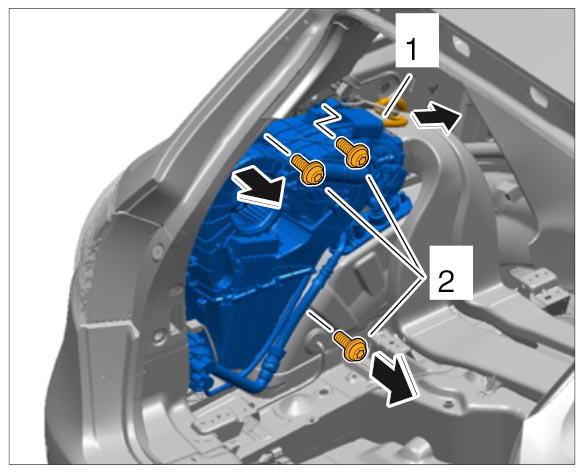

    Fig 1: Disconnecting Additional Air Conditioner Connector
    G09941651Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -2-  on the additional air conditioner.
  3. Carefully unclip locking lugs for the air guide -3-  on the additional air conditioner.

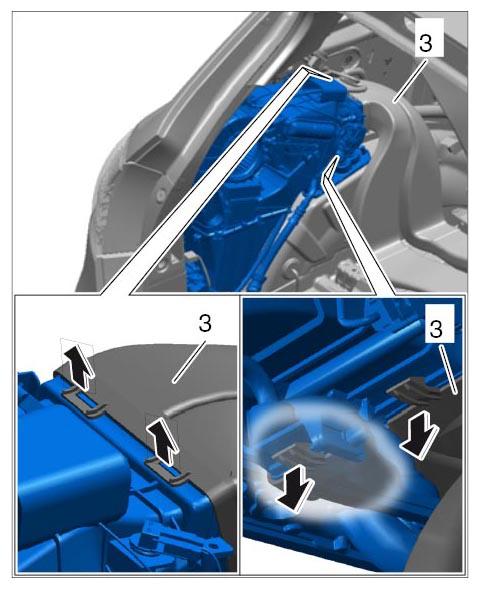

    Fig 2: Loosening Locking Lugs For Air Guide
    G09941652Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Carefully tilt additional air conditioner to the right and be careful with the flexible coolant hoses.
  5. Release and disconnect connector -A-  on the fan motor -2-  .

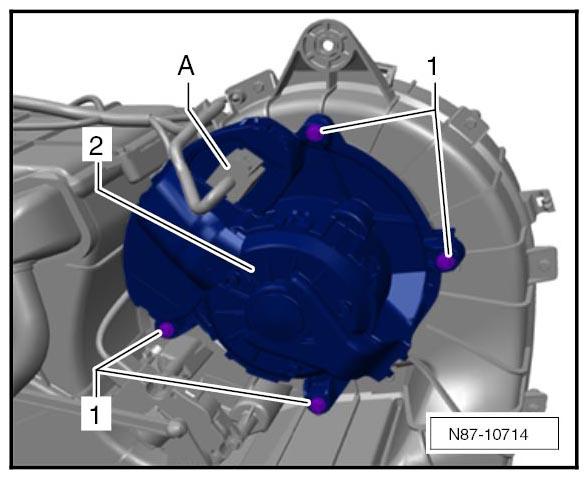

    Fig 3: Removing Fan Motor
    G09941653Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Unscrew screws -1-  on the fan motor.
  7. Remove fan motor.
