Removing Temperature Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

There are two temperature sensors in the air guide. The steps required for removing the left temperature sensor are described here. Complete the steps accordingly for the right temperature sensor.

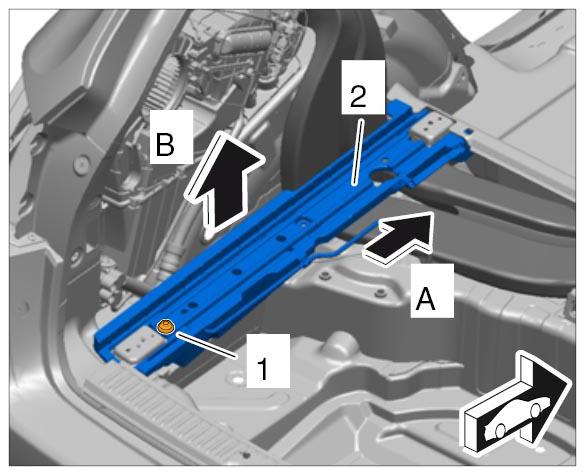

Loosen the screw -1- on the left support for the luggage compartment cover and remove the support -2- .

Fig 1: Removing Support From Luggage Compartment Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen the temperature sensor -1- by turning it approx. 90° clockwise and remove it.

Fig 2: Removing Temperature Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

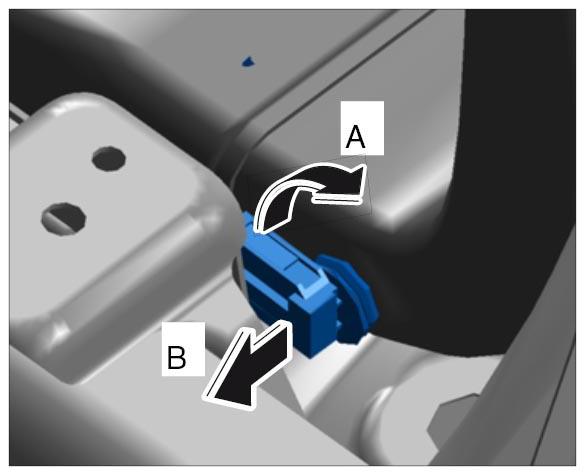

Release and pull off connector on the temperature sensor.
