Removing Rear Air Duct

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

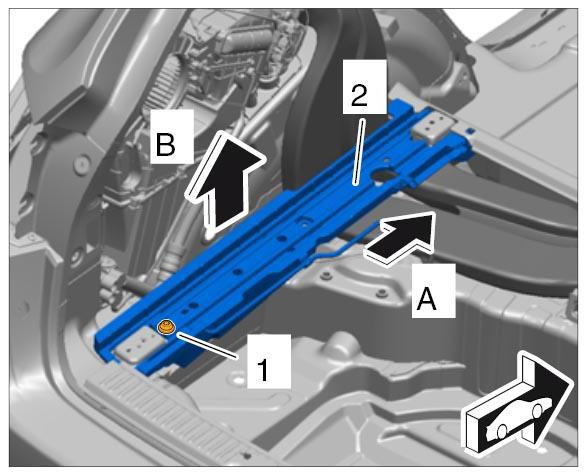

  1. Loosen the screw -1-  on the left support for the luggage compartment cover and remove the support -2-  .
    Fig 1: Removing Support From Luggage Compartment Cover
    G09941630Courtesy of PORSCHE CARS NORTH AMERICA, INC.

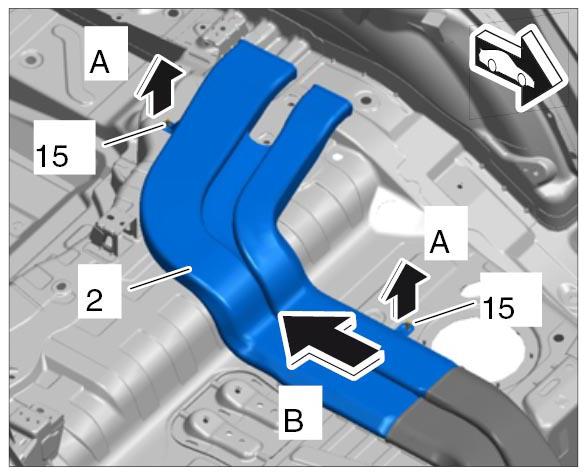

  2. Carefully detach the air guide -2-  from the studs at the fastening points -15-  and remove it.
    Fig 2: Removing Rear Air Duct
    G09941631Courtesy of PORSCHE CARS NORTH AMERICA, INC.
