Removing Air Duct In Wheel Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully unclip locking lugs for the air guide -3-  on the additional air conditioner.

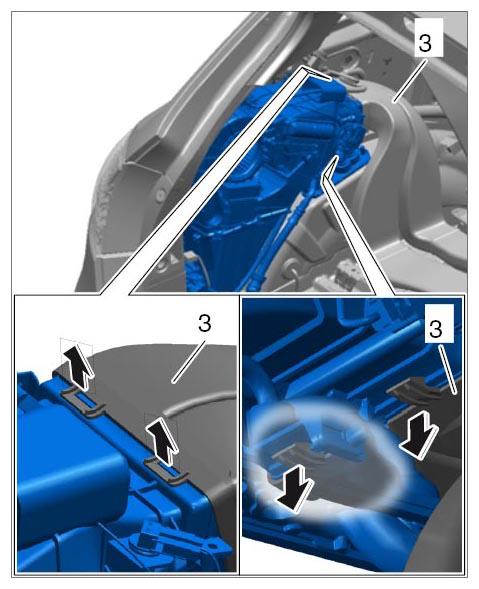

    Fig 1: Loosening Locking Lugs For Air Guide
    G09941628Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully remove the air guide -1-  .

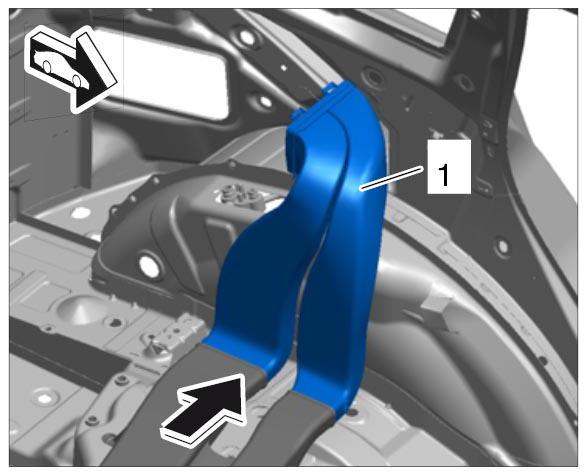

    Fig 2: Removing Air Guide In Wheel Housing
    G09941629Courtesy of PORSCHE CARS NORTH AMERICA, INC.
