Removing Rear Air-Conditioning System Regulator
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
- Never touch the electric pins and plug contacts .
Information
- The ignition must be switched off and the ignition key removed before the control unit for the auxiliary air conditioning system can be removed .
Information
To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

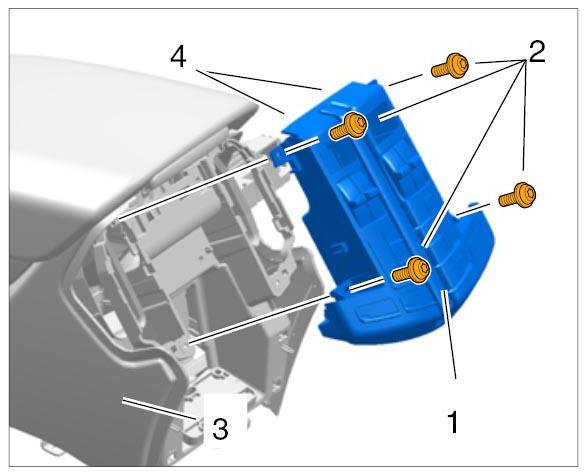

- Unscrew screws -2- on the rear air-conditioning system regulator -1- from the center console -3- .
- Unclip fixing clips -4- from the center console -3- using a suitable tool.

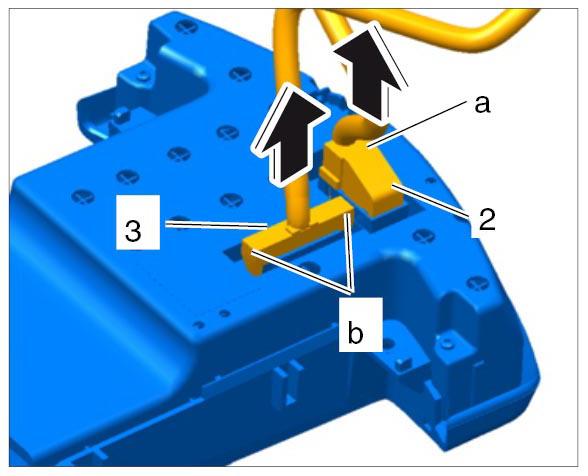

- Release electric plug connection -2- for heated seats -a- and pull it off the air-conditioning system regulator -arrow- .
- Release electric plug connection -3- for air-conditioning system regulator -b- and pull it off the air-conditioning system regulator -arrow- .
