Installation Position Of Additional Air Conditioner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

On vehicles with four-zone air conditioning (2+2), the additional air conditioning system is located behind the left rear side section cover.

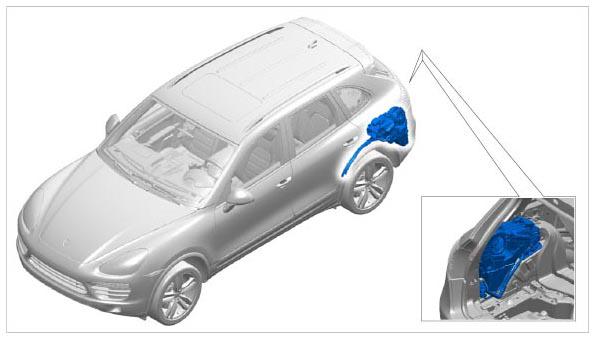

Fig 1: Identifying Additional Air Conditioner Installation Position
G09941594Courtesy of PORSCHE CARS NORTH AMERICA, INC.
