Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

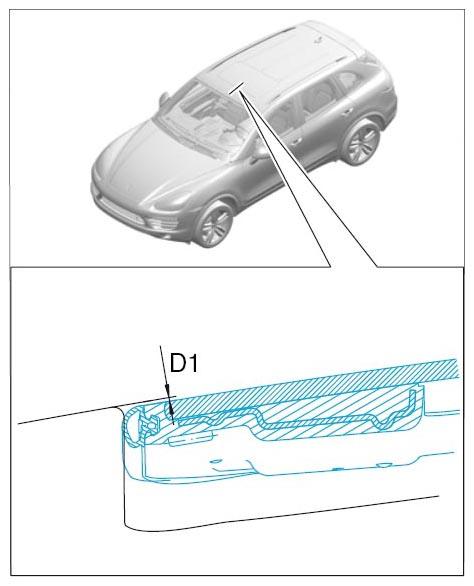

| Roof to sliding-roof panel (D1) | Roof only recessed | Gap dimension | 1 mm | -1 mm | |
|
Roof to sliding-roof panel |
|||||

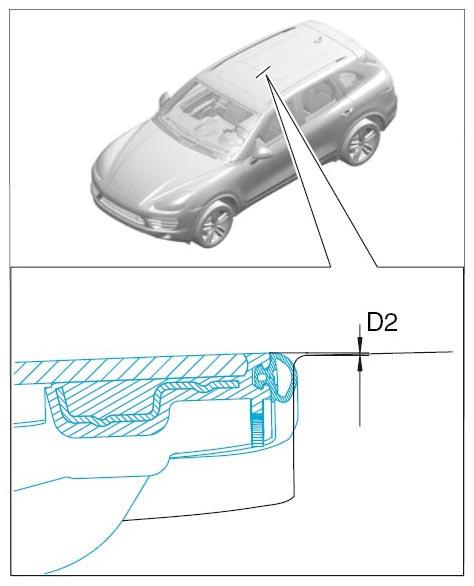

| Sliding-roof panel to roof (D2) | Roof only raised | Gap dimension | 0.8 mm | +0.2 mm | -0.8 mm |
|
Sliding-roof panel to roof |
|||||

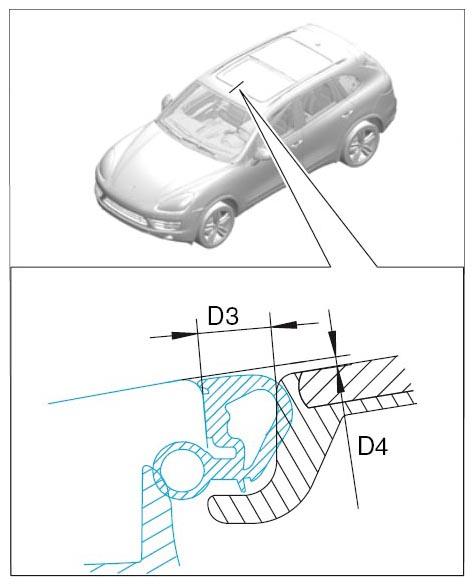

| Roof to front lid (D3) | Gap dimension | 10 mm | +/-1.2 mm | ||
|
Roof to front lid |
|||||
| Roof to front lid (D4) | Gap dimension | 1.4 mm | +/-1 mm | ||
|
Roof to front lid |
|||||

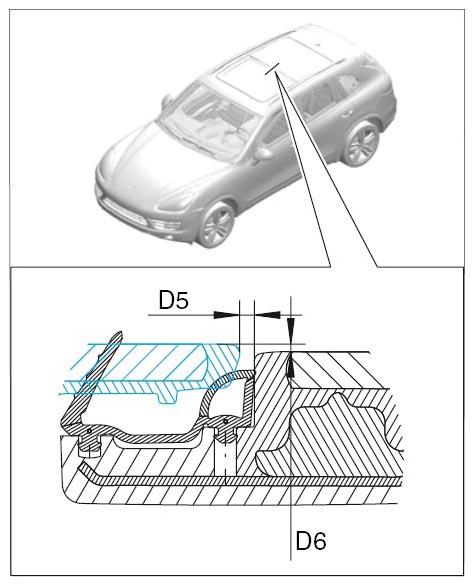

| Front panel to rear panel (D5) | Gap dimension | 2 mm | +/-0.5 mm | ||
|
Front panel to rear panel |
|||||
| Front panel to rear panel (D6) | Gap dimension | 1 mm | +1.2 mm | -0.6 mm | |
|
Front panel to rear panel |
|||||

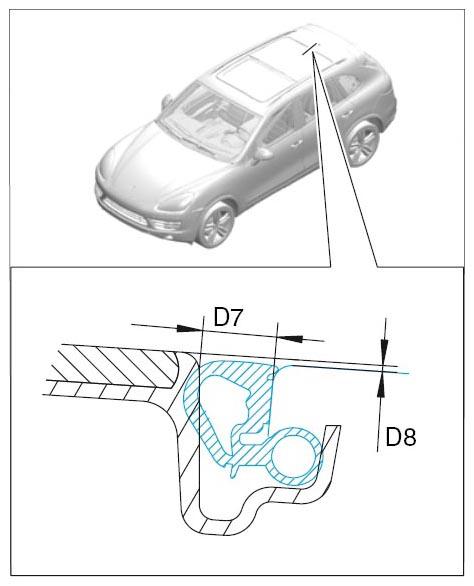

| Rear lid to roof (D7) | gap dimension | 10 mm | +/-1.2 mm | ||
|
Rear lid to roof |
|||||
| Rear lid to roof (D8) | Gap dimension | 0.8 mm | +/-1 mm | ||
|
Rear lid to roof |
|||||

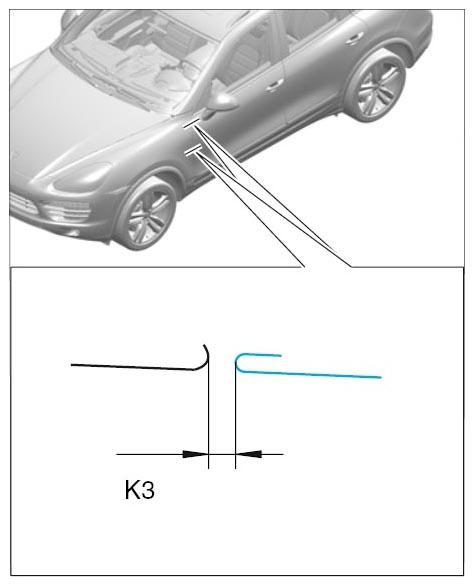

| Wing to door (K3) | Gap dimension | 3.7 mm | +/-0.5 mm | ||
|
Wing to door |
|||||
| Wing to door (K3b) | Door only recessed | Gap dimension | 0 mm | -1 mm | |
|
Wing to door |
|||||

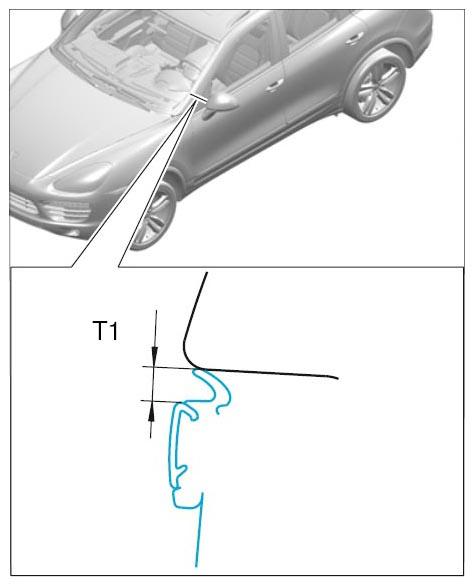

| Door frame to side panel (T1) | Gap dimension | 5.9 mm | +/-2 mm | ||
|
Door frame to side panel |
|||||
| Door frame to side panel (T1b) | Door frame only recessed | Gap dimension | 0 mm | +2 mm | |
|
Door frame to side panel |
|||||

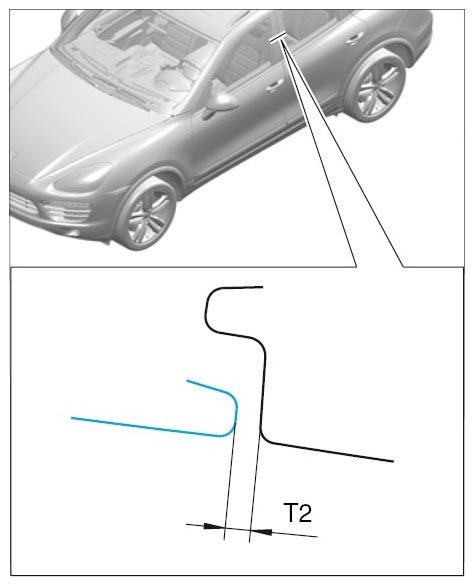

| B-pillar trim on front door to B-pillar trim on rear door (T2) | Gap dimension | 4.2 mm | +/-1 mm | ||
|
B-pillar trim on front door to B-pillar trim on rear door |
|||||
| B-pillar trim on front door to B-pillar trim on rear door (T2b) | Flush | Gap dimension | 0 mm | +0.5 mm | -1.5 mm |
|
B-pillar trim on front door to B-pillar trim on rear door |
|||||
| Front door to rear door (T3) | Gap dimension | 4.2 mm | +/-0.8 mm | ||
|
Front door to rear door |
|||||
| Front door to rear door (T3b) | Rear door recessed | Gap dimension | 0 mm | -1 mm | |
|
Front door to rear door |
|||||

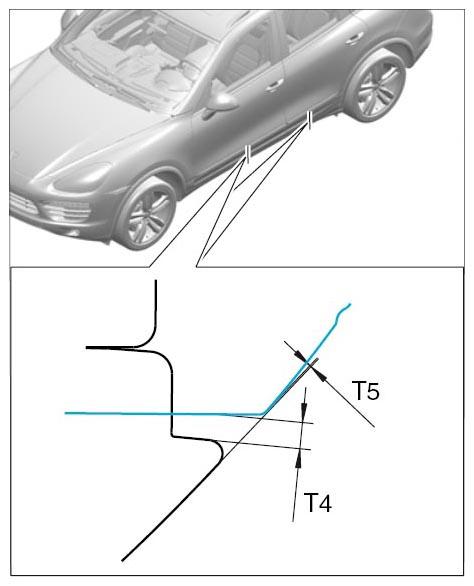

| Door panel to door entry guard (T4) | Gap dimension | 4.8 mm | +/-1.5 mm | ||
|
Door panel to door entry guard |
|||||
| Door panel to door entry guard (T5) | Gap dimension | 0.3 mm | +0.5 mm | -1.5 mm | |
|
Door panel to door entry guard |
|||||

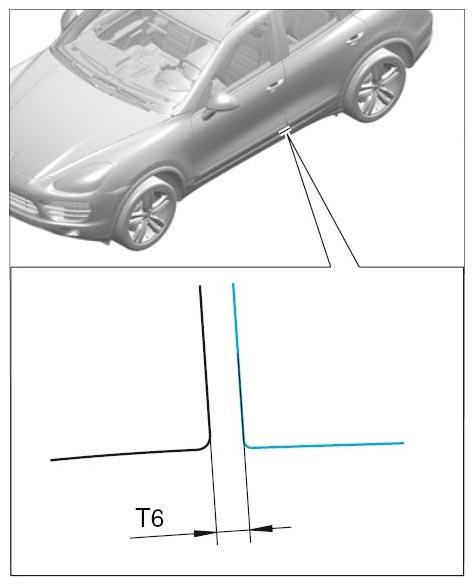

| Front door panel to rear door panel (T6) | Gap dimension | 5.7 mm | +1.2 mm | -1 mm | |
|
Front door panel to rear door panel |
|||||
| Front door panel to rear door panel (T6b) | Flush | Gap dimension | 0 mm | +0.5 mm | -1.5 mm |
|
Front door panel to rear door panel |
|||||

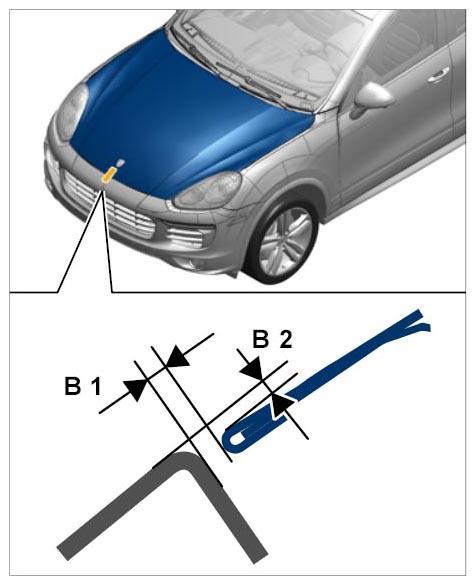

| Front apron to front lid (B1) | Gap dimension | 3 mm | +/-0.7 mm | ||
|
Front apron to front lid |
|||||
| Front apron to front lid (B2) | Gap dimension | 1 mm | +/-0.9 mm | ||
|
Front apron to front lid |
|||||
| Front lid to headlights (K1) | Gap dimension | 3 mm | +/-1 mm | ||
|
Lid to headlights |
|||||

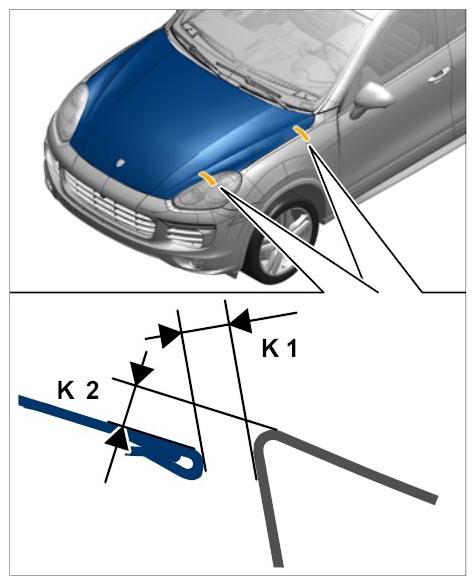

| Rear wing to front lid (K1) | Gap dimension | 3.5 mm | +0.7 mm | -0.9 mm | |
|
Lid to wing |
|||||
| Rear wing to front lid (K2) | Gap dimension | 2 mm | |||
|
Lid to wing |
|||||

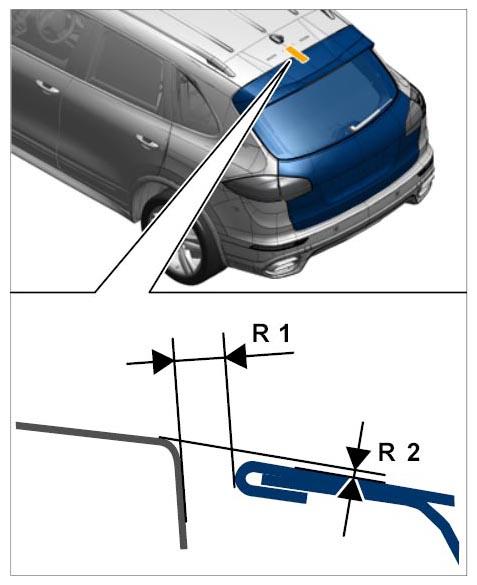

| Spoiler to roof (R1) | Gap dimension | 5.5 mm | +/-1 mm | ||
|
Rear lid to roof |
|||||
| Spoiler to roof (R2) | Gap dimension | 1 mm | +/-1 mm | ||
|
Rear lid to roof |
|||||

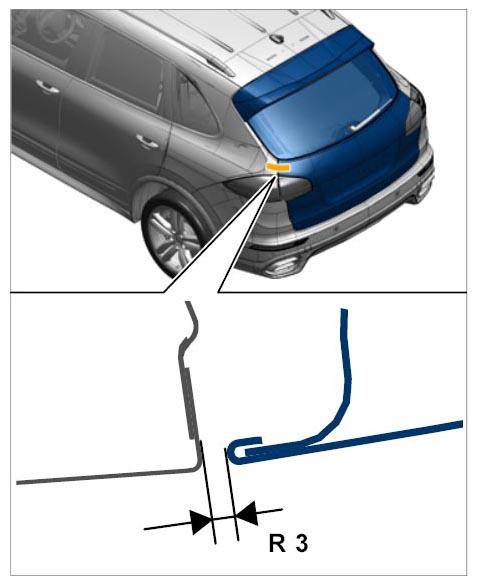

| Lid to side panel (R3) | Gap dimension | 4 mm | +/-1 mm | ||
|
Rear lid to side panel |
|||||

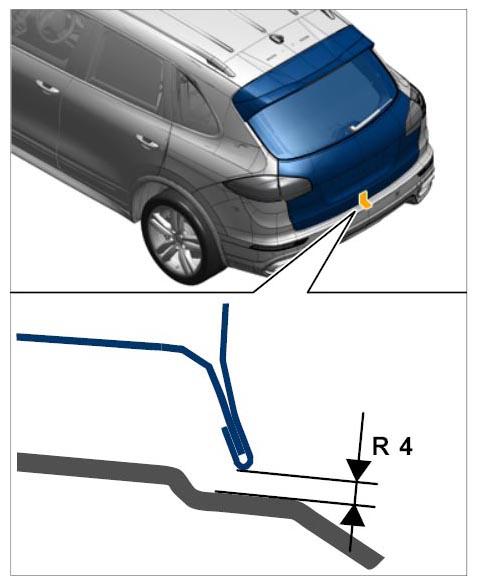

| Lid to rear apron (R4) | Gap dimension | 4 mm | +/-1 mm | ||
|
Rear lid to rear apron |
|||||
→ Gap dimension: 1 mm-1 mm
→ Gap dimension: 0.8 mm+0.2 mm-0.8 mm
