Gap Dimensions Of Panoramic Roof

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 10 mm+/-1.2 mm

Fig 1: Identifying Gap Dimension Of Roof To Front Lid

G09939735

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1.4 mm+/-1 mm

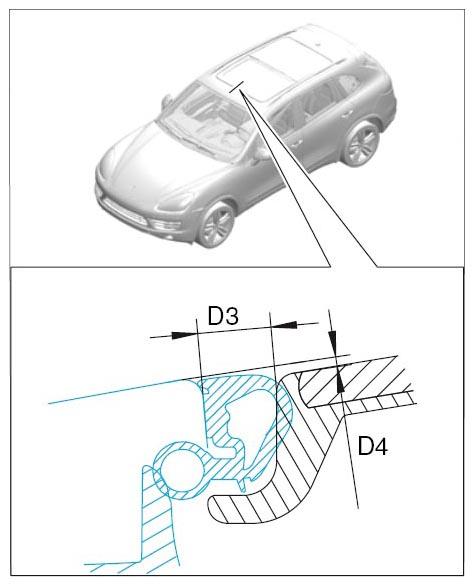

Fig 2: Identifying Gap Dimension Of Roof To Front Lid

G09939736

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2 mm+/-0.5 mm

Fig 3: Identifying Gap Dimension Of Front To Rear Panel

G09939737

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+1.2 mm-0.6 mm

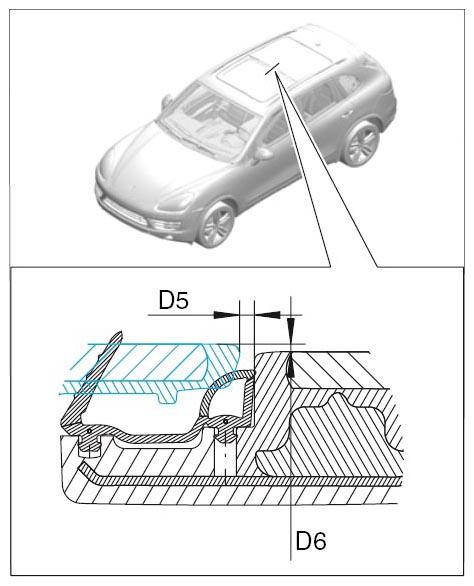

Fig 4: Identifying Gap Dimension Of Rear To Front Panel

G09939738

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ gap dimension: 10 mm+/-1.2 mm

Fig 5: Identifying Gap Dimension Of Rear Lid To Roof

G09939739

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.8 mm+/-1 mm

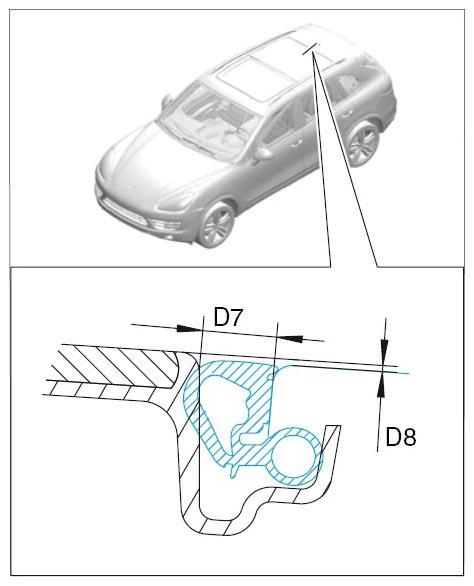

Fig 6: Identifying Gap Dimension Of Roof To Rear Lid

G09939740

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
