Gap Dimensions Of Front Lid
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

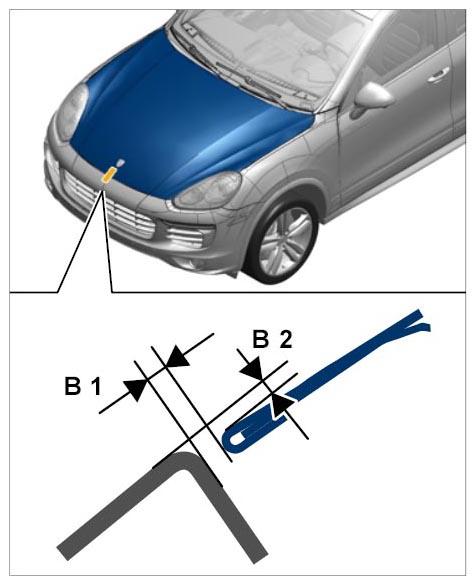

| Front apron to front lid (B1) | Gap dimension | 3 mm | +/-0.7 mm | ||
|
Front apron to front lid |
|||||
| Front apron to front lid (B2) | Gap dimension | 1 mm | +/-0.9 mm | ||
| Front apron to front lid | |||||

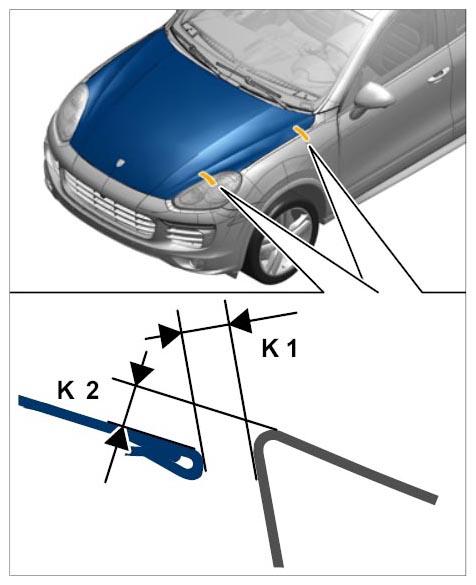

| Front lid to headlights (K1) | Gap dimension | 3 mm | +/-1 mm | ||
|
Lid to headlights |
|||||
