Gap Dimensions Of Front Door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 3.7 mm+/-0.5 mm

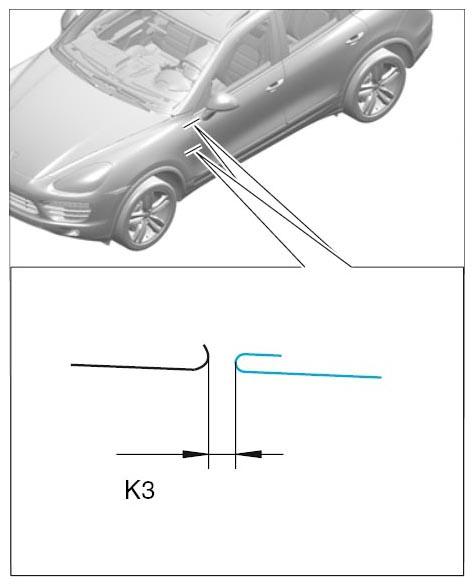

Fig 1: Identifying Gap Dimension Of Wing To Door

G09939741

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm-1 mm

Fig 2: Identifying Gap Dimension Of Door To Wing

G09939742

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 5.9 mm+/-2 mm

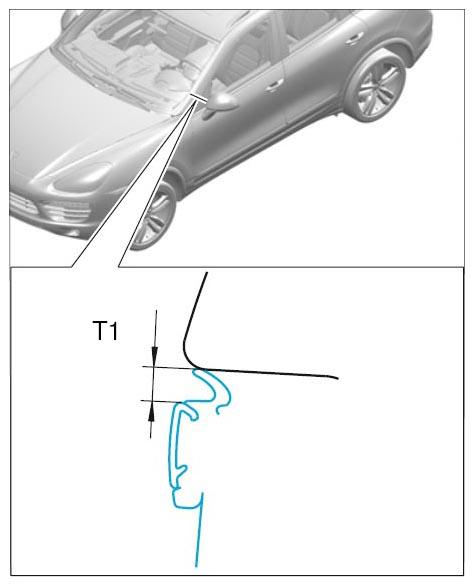

Fig 3: Identifying Gap Dimension Of Door Frame To Side Panel

G09939743

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+2 mm

Fig 4: Identifying Gap Dimension Of Side Panel To Door Frame

G09939744

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.2 mm+/-1 mm

Fig 5: Identifying Gap Dimension Of B-Pillar Trim On Front To Rear Door

G09939745

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

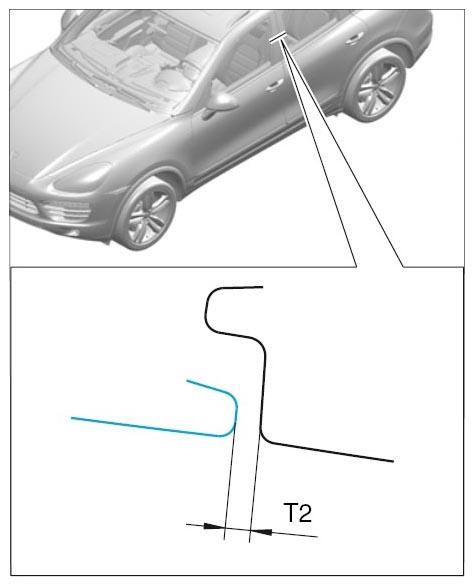

Fig 6: Identifying Gap Dimension Of B-Pillar Trim On Rear To Front Door

G09939746

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.2 mm+/-0.8 mm

Fig 7: Identifying Gap Dimension Of Front To Rear Door

G09939747

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm-1 mm

Fig 8: Identifying Gap Dimension Of Rear To Front Door

G09939748

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.8 mm+/-1.5 mm

Fig 9: Identifying Gap Dimension Of Door Panel To Entry Guard

G09939749

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.3 mm+0.5 mm-1.5 mm

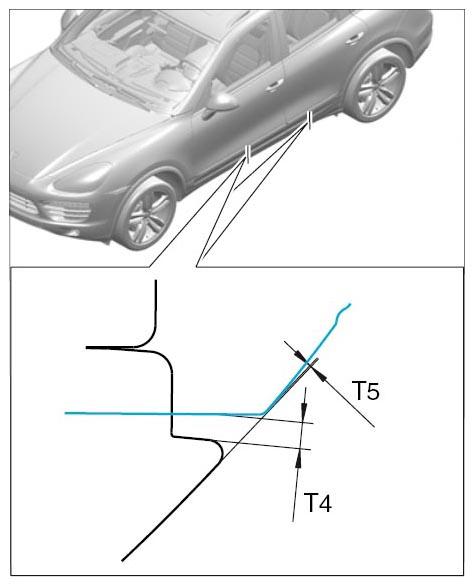

Fig 10: Identifying Gap Dimension Of Door Entry Guard To Panel

G09939750

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 5.7 mm+1.2 mm-1 mm

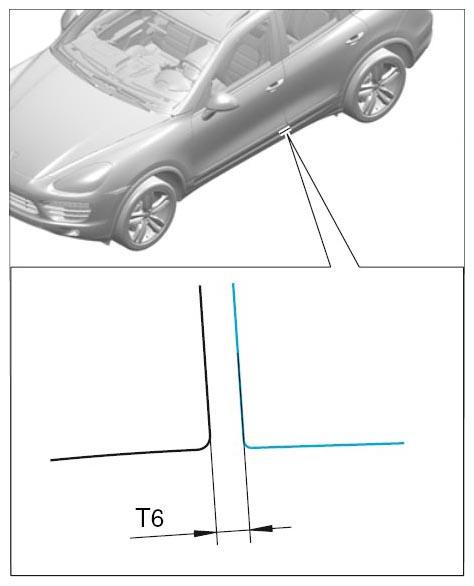

Fig 11: Identifying Gap Dimension Of Front To Rear Door Panel

G09939751

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

Fig 12: Identifying Gap Dimension Of Rear To Front Door Panel

G09939752

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
