Detonator (Ignition Device) 9257

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Ignition device 9257

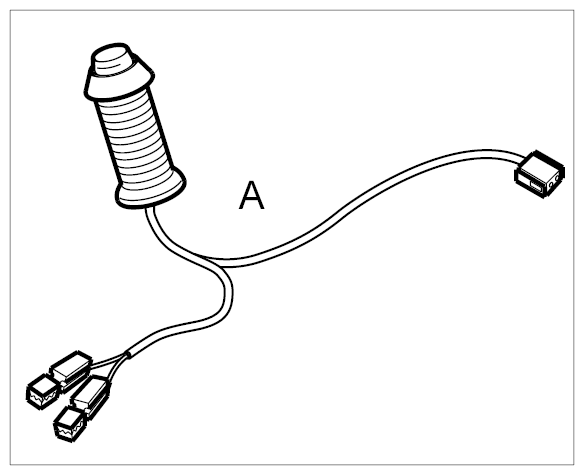

Fig 1: Overview Of Ignition Device (92570)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

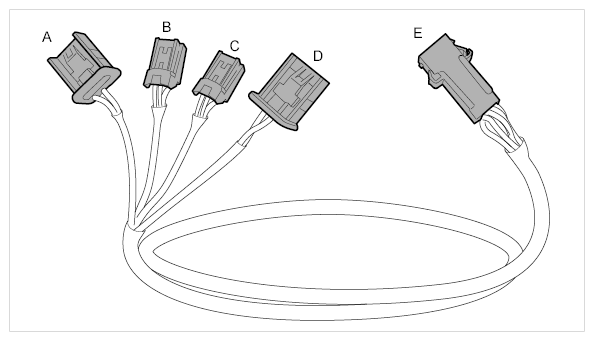

Adapter cable 9257/4

Purple marking on connector - adapter for knee airbag
Marking A - adapter for 1st stage of driver's airbag unit
Marking B - adapter for 2nd stage of driver's airbag unit
Green marking on connector - adapter not required
Adapter for ignition device

Fig 2: Overview Of Adapter Cable (9257/4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

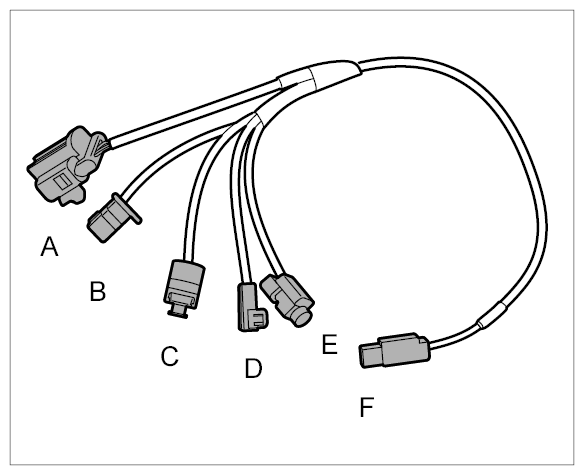

Adapter cable 9257/7

Purple marking on connector - adapter not required
Blue marking - adapter for 1st stage of driver's airbag unit
Black marking on connector - adapter for head airbag
Turquoise marking on connector - adapter for 1st stage of passenger's airbag unit
Yellow marking on connector - adapter for 2nd stage of passenger's airbag unit and seat-belt pretensioner
Adapter for ignition device

Fig 3: Overview Of Adapter Cable (9257/7)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adapter cable 9257/8

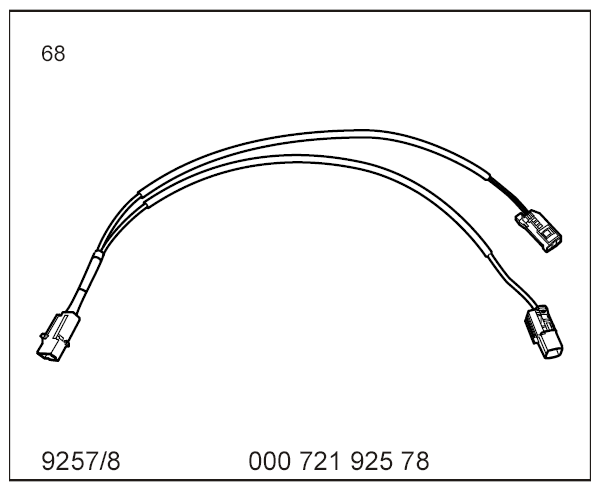

Fig 4: Identifying Adapter Cable (9257/8) For Side Airbag

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
