Removing Additional Seal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
These must be carried out as a mirror image of the steps shown.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

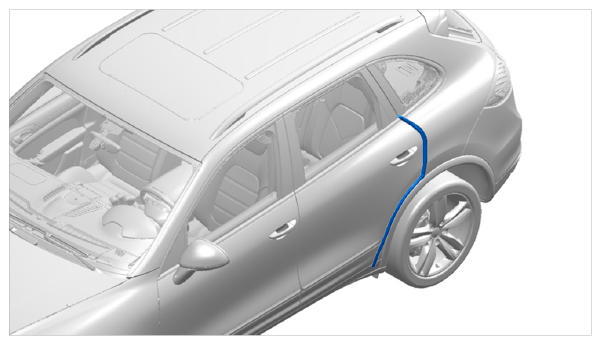

Fig 1: Identifying Additional Seal Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

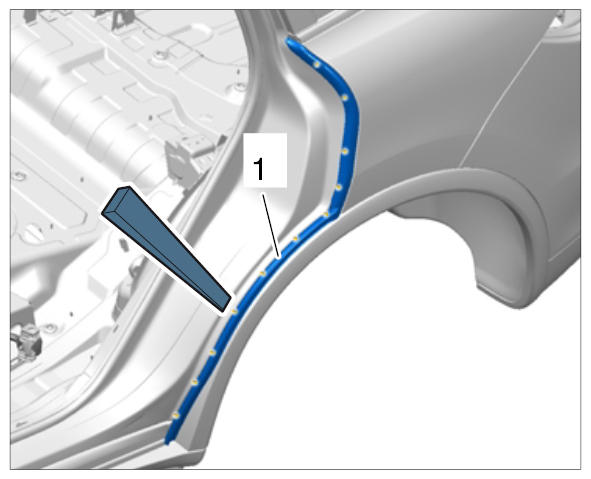

Unclip additional seal -1- downwards from above using a plastic wedge.

Fig 2: Removing Additional Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
