Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw securing door hinge to outer B-pillar | Tightening torque | 50 Nm (37 ftlb.) | |||
|

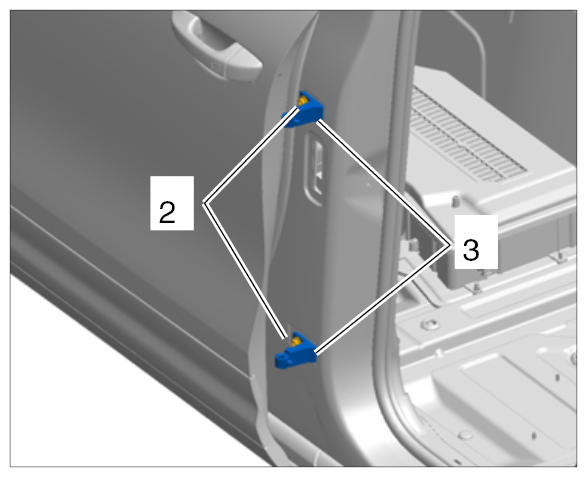

Mounting for rear door hinge on body side at the outside |
|||||
| Fastening screw securing door hinge to inner B-pillar | Tightening torque | 50 Nm (37 ftlb.) | |||
|

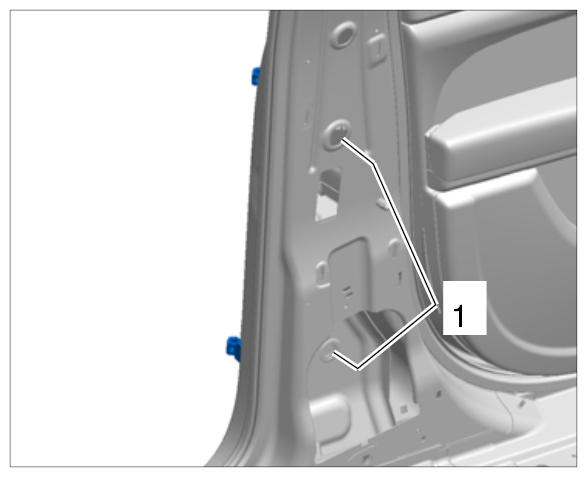

Mounting for rear door hinge on body side at the inside |
|||||
| Fastening screw securing door hinge to rear door | Tightening torque | 50 Nm (37 ftlb.) | |||
|

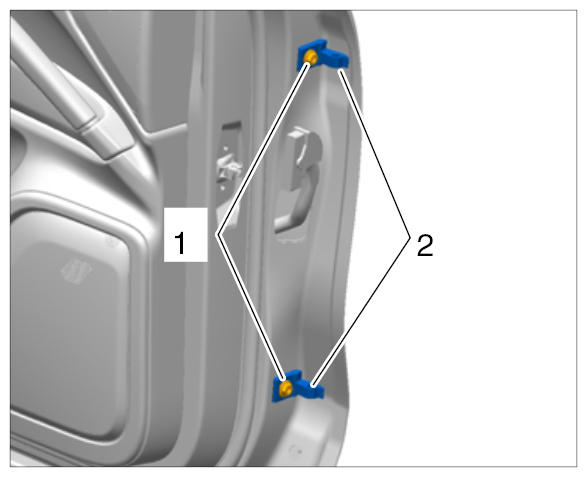

Removing rear door hinge on door side |
|||||
