Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for B-pillar | Tightening torque | 30 Nm (22 ftlb.) | |||
|

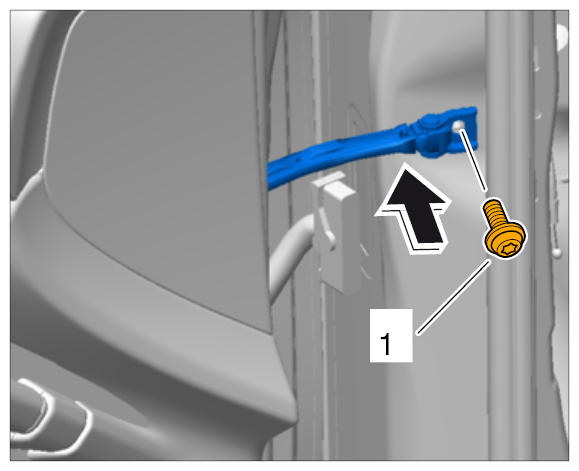

Tightening fastening screw for A-pillar |
|||||
| Fastening screw for door hinge | Tightening torque | 23 Nm (17 ftlb.) | +/-3.5 Nm (+/-2.5 ftlb.) | ||
|

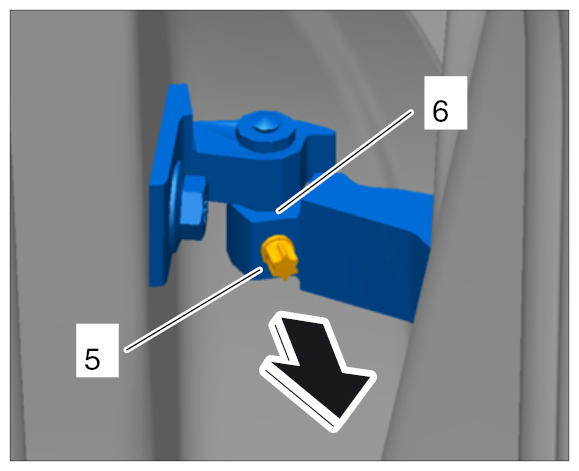

Loosening fastening screws for hinge connection |
|||||
