Removing Rear Door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Open vehicle door.
Detach rubber cover.
1. 2.1. Press unlocking lug -arrow A- .
2. 2.2. Swivel rubber cover -1- down -arrow B- .
3. 2.3. Pull back rubber cover -1- on the wiring harness.
Fig 1: Removing Rubber Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection -1- between the body and door.
1. 3.1. Turn retaining bar -2- down by 90° -A- .

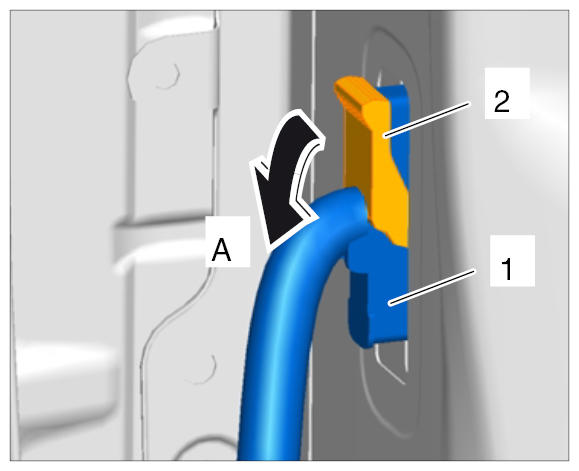

  Fig 2: Disconnecting Electric Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Unplug electric plug connection -1- by pulling it outwards.
Unscrew and remove fastening screw on the door arrester -4- at the B-pillar.

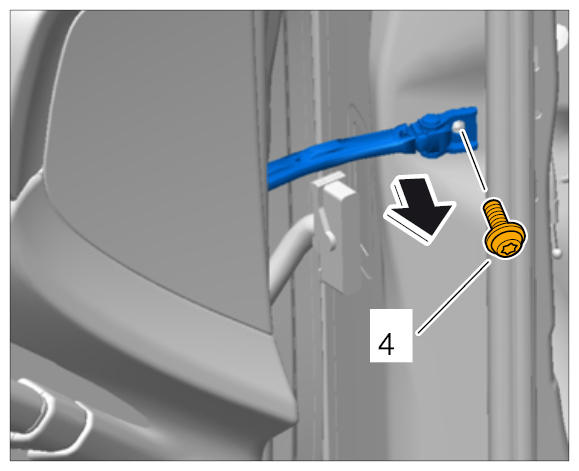

Fig 3: Removing Screw On Door Arrester
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull plastic caps -3- off the hinge screws at the top and bottom hinge joints -6- .

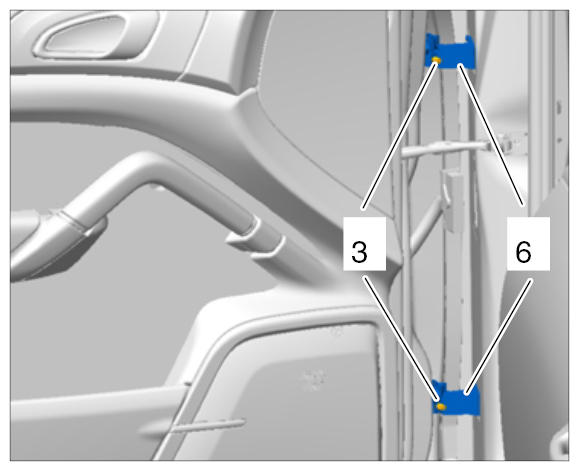

Fig 4: Pulling Off Caps On Hinge Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening screws -5- on the upper and lower hinge joint -6- .

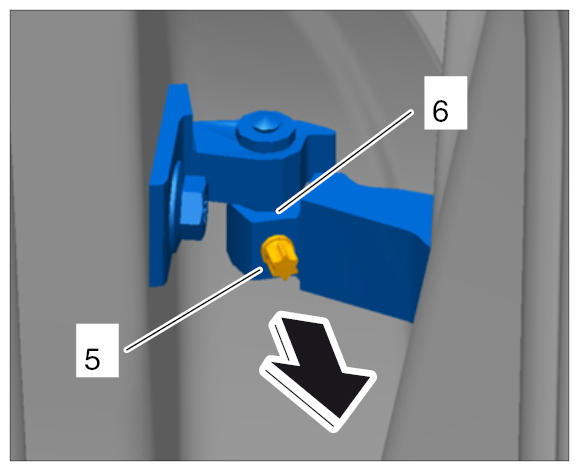

Fig 5: Loosening Hinge Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Get another person to hold the vehicle door.
Lift the vehicle door up slightly until the hinge bolts come out of the hinge halves on the door side.

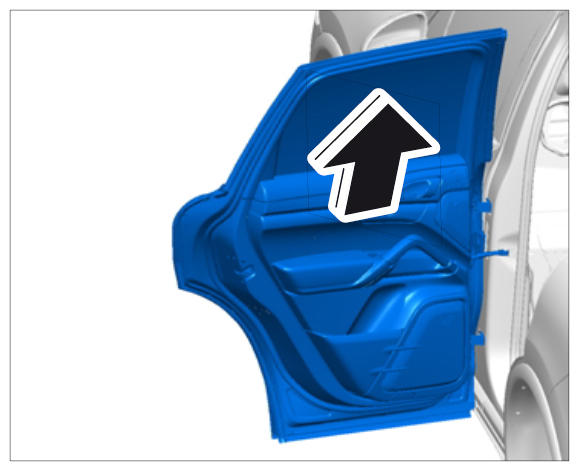

Fig 6: Lifting Vehicle Door
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove vehicle door.
