Gap Dimensions Of Rear Door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 4.2 mm+/-1 mm

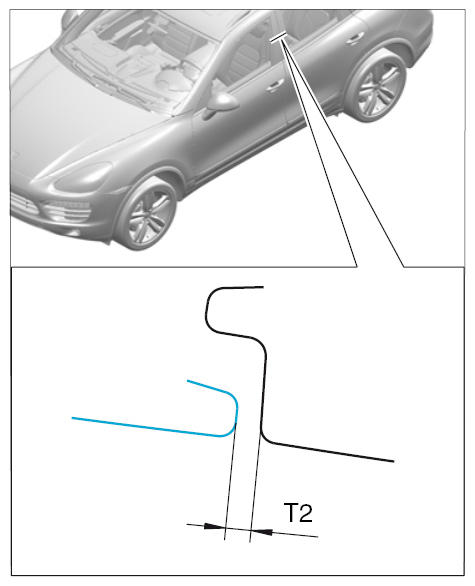

Fig 1: Identifying Gap Dimension Of B-Pillar Trim On Front And Rear Door

G09939595

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

Fig 2: Identifying Gap Dimension Of B-Pillar Trim On Rear And Front Door

G09939596

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.2 mm+/-0.8 mm

Fig 3: Identifying Gap Dimension Of Front To Rear Door

G09939597

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm-1 mm

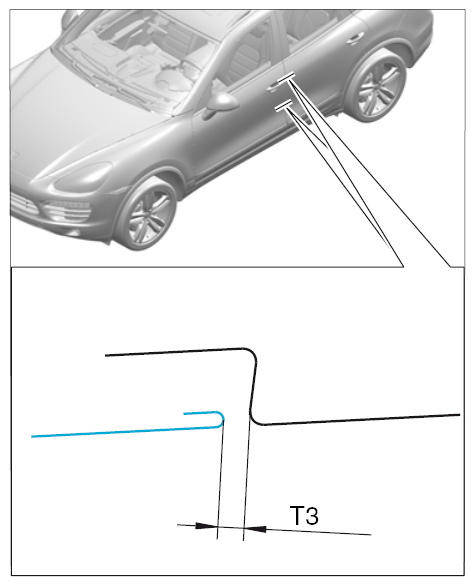

Fig 4: Identifying Gap Dimension Of Front To Rear Door

G09939598

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 5.7 mm+1.2 mm-1 mm

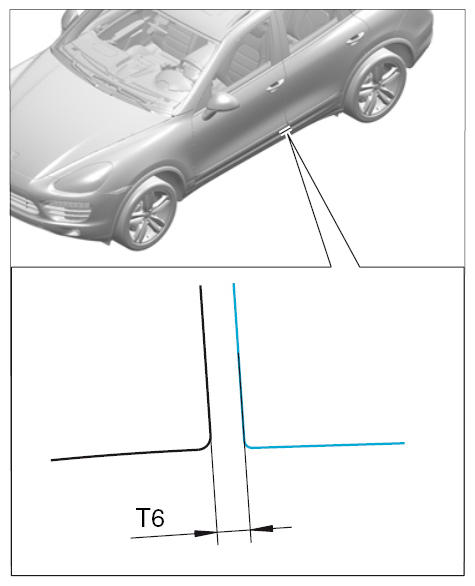

Fig 5: Identifying Gap Dimension Of Front To Rear Door Panel

G09939599

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

Fig 6: Identifying Gap Dimension Of Front To Rear Door Panel

G09939600

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.8 mm+/-1.5 mm

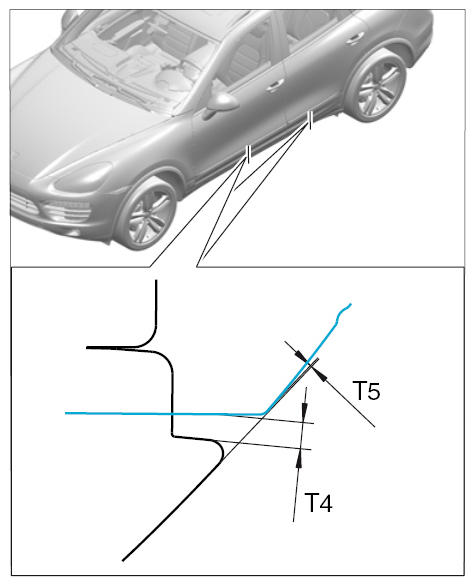

Fig 7: Identifying Gap Dimension Of Door Panel To Entry Guard

G09939601

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.3 mm+0.5 mm-1.5 mm

Fig 8: Identifying Gap Dimension Of Door Panel To Entry Guard

G09939602

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3.7 mm+/-0.5 mm

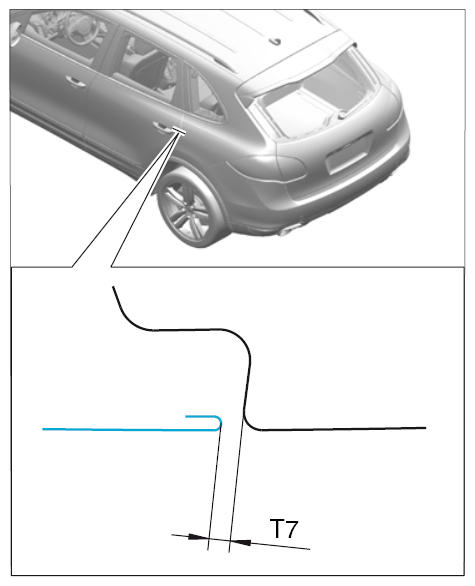

Fig 9: Identifying Gap Dimension Of Rear Door To Side Panel

G09939603

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm-1 mm

Fig 10: Identifying Gap Dimension Of Rear Door To Side Panel

G09939604

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3.8 mm+/-1 mm

Fig 11: Identifying Gap Dimension Of C-Pillar Trim On Rear Door To Side Window

G09939605

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

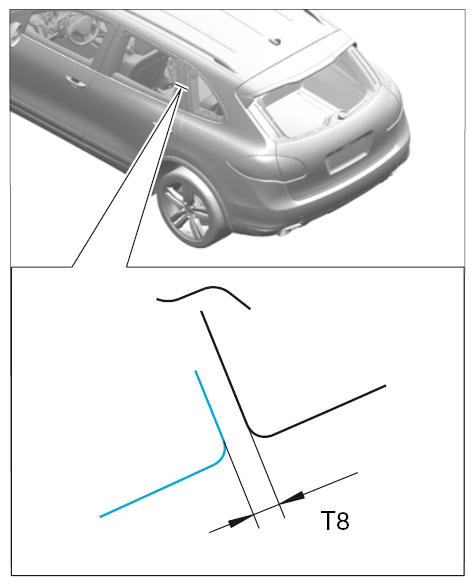

Fig 12: Identifying Gap Dimension Of C-Pillar Trim On Rear Door To Side Window

G09939606

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 5.6 mm+/-2 mm

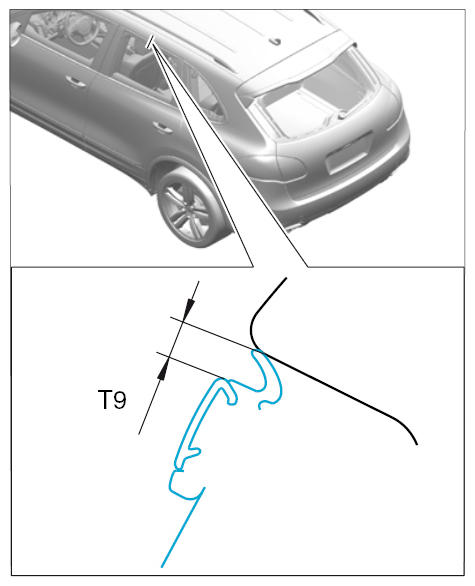

Fig 13: Identifying Gap Dimension Of Door Molding To Side Panel

G09939607

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+2 mm

Fig 14: Identifying Gap Dimension Of Door Molding To Side Panel

G09939608

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
