Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for mounting pieces for door window | Tightening torque | 6 Nm (4.5 ftlb.) | |||
|
Loosening mounting pieces for window glass |
|||||

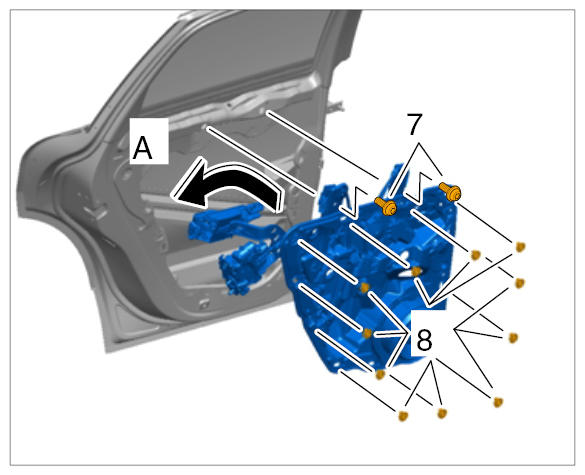

| Fastening screw for power windows mechanism | Item 7 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Installing sub-frame |
|||||

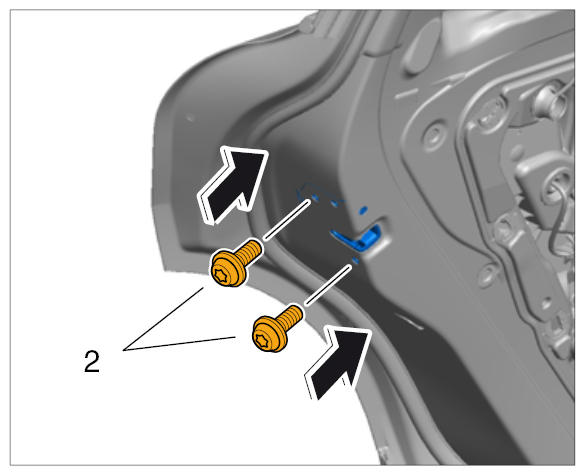

| Fastening screw securing door lock to door | Tightening torque | 20 Nm (15 ftlb.) | |||
|
Screwing in fastening screws on door lock |
|||||

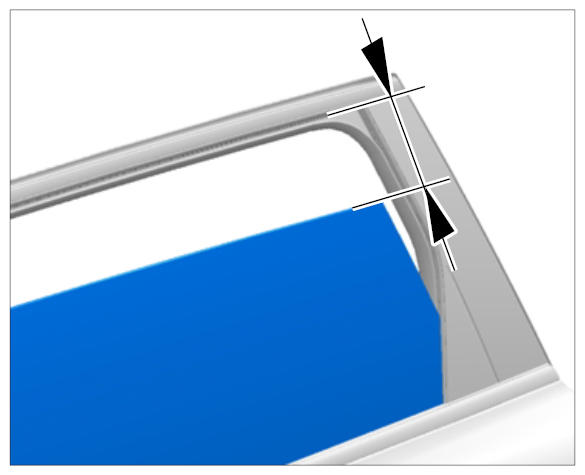

| Rear door window opening | Adjustment value | 205 mm | +/-2 mm | ||
|
Guiding down rear door window |
|||||
