Removing Rear Door Sub-Frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect electric plug connection -1- between the body and door.
1. 1.1. Unclip rubber cover for the wire harness at the B-pillar and pull it back.

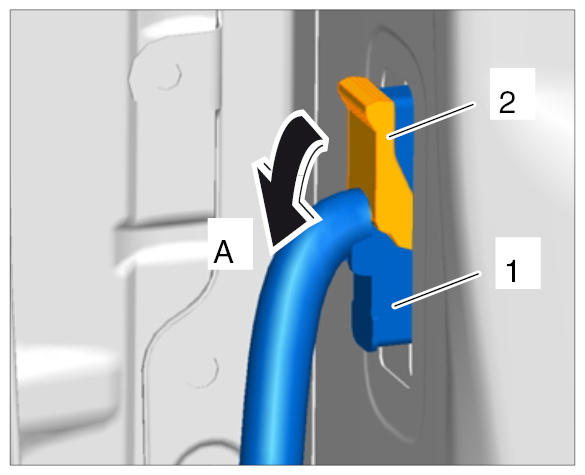

2. 1.2. Turn retaining bar -2- down by 90° -A- .
3. 1.3. Disconnect electric plug connection -1- .
Fig 1: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push wire harness with connector through the opening into the vehicle door.
Loosen door window glass.

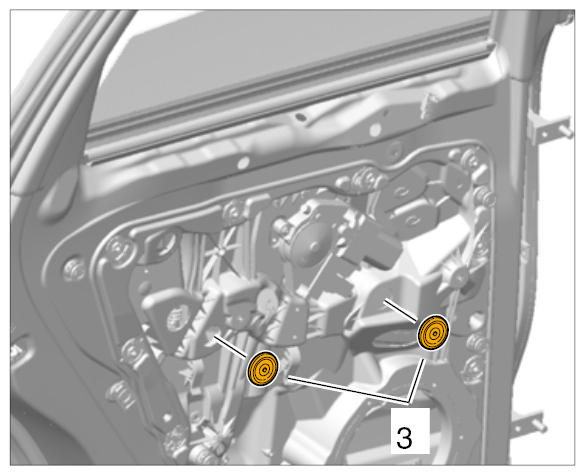

1. 3.1. Remove stoppers and wiring harness -3- .

  Fig 2: Identifying Stoppers
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Loosen left-thread fastening screws by turning them clockwise.

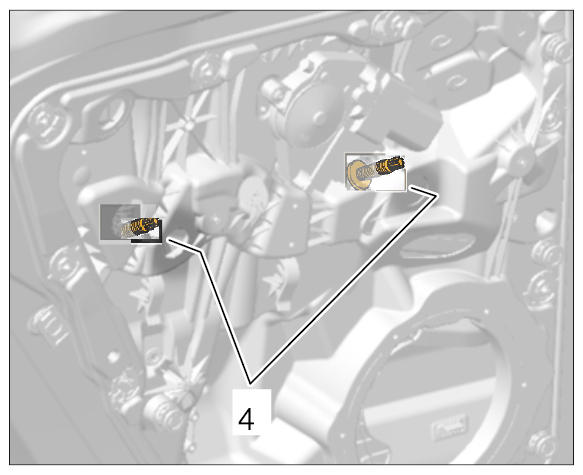

2. 3.2. Loosen fastening screws on the mounting pieces -4- .

  Fig 3: Loosening Mounting Pieces For Door Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

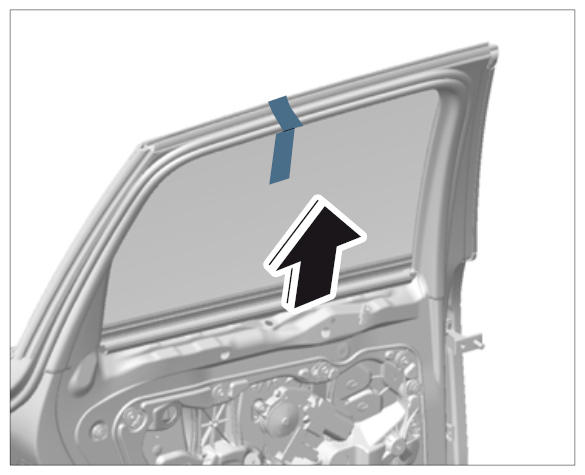

3. 3.3. Pull door window out of the mounting pieces and fix in place in the upper position using adhesive tape.

  Fig 4: Fixing Door Window In Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove front door sub-frame.

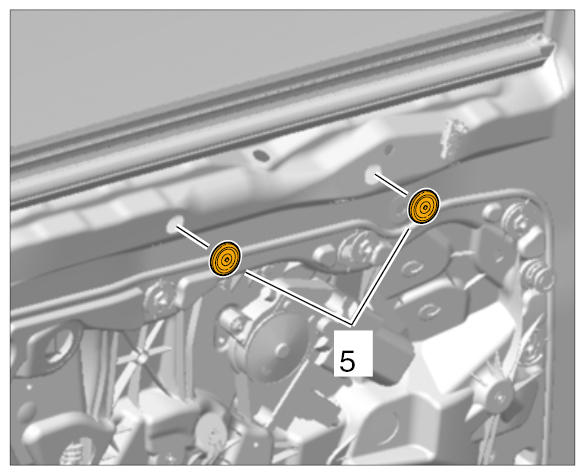

1. 4.1. Remove fabric tape -5- from the holes.

  Fig 5: Identifying Fabric Tape
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

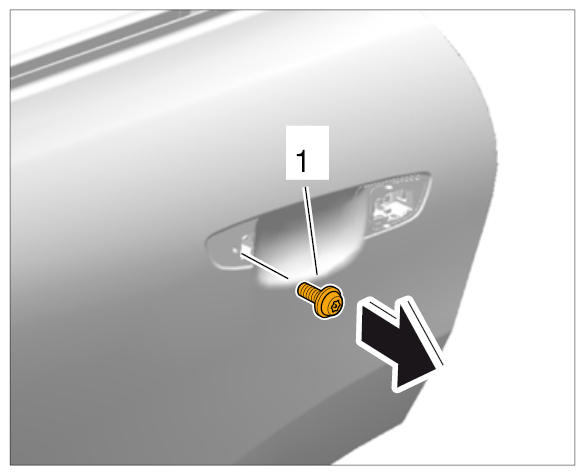

2. 4.2. Unscrew fastening screw -1- on inner part of door handle.

  Fig 6: Removing Screw On Inner Part Of Door Handle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

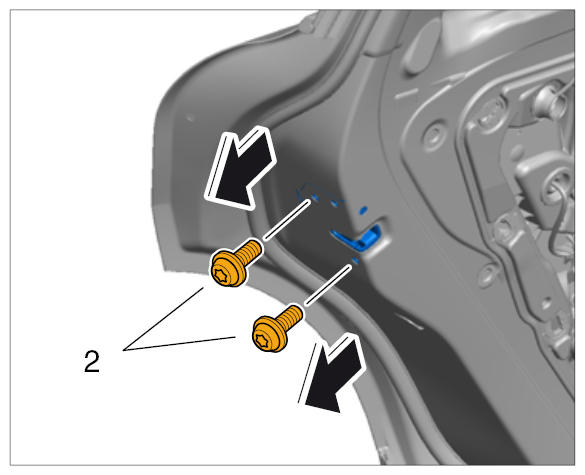

3. 4.3. Unscrew fastening screws -2- on door lock.

  Fig 7: Removing Screws On Door Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

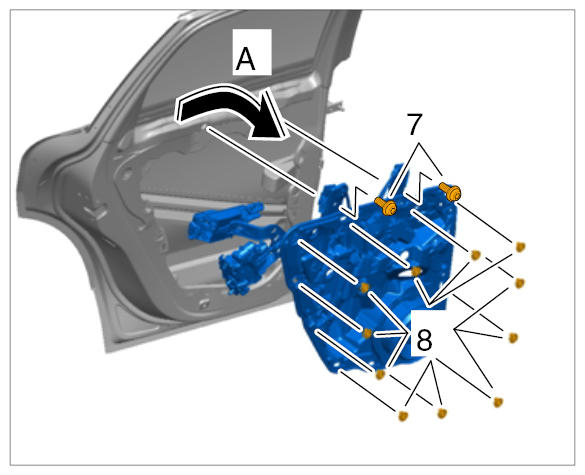

4. 4.4. Unscrew and remove fastening screws -7- for the window lifter.

  Fig 8: Removing Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 4.5. On vehicles with sun blind, pull up guide tube for push rod.
6. 4.6. Turn clips by 90° and pull them out of the door sub-frame -8- to the vehicle door.
7. 4.7. Pull door sub-frame outwards and then inwards.

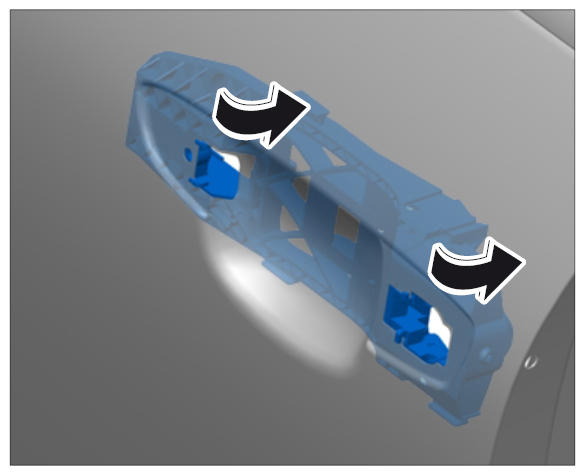

8. 4.8. Unhook inner part of door handle.

  Fig 9: Unclipping Inner Part Of Door Handle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. 4.9. Pull wiring harness for B-pillar through the opening into the vehicle door.
10. 4.10. Remove door sub-frame by guiding out the door lock with mounting bracket -arrow A- .
