Installing Lock Peg

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Position lock peg (striker pin) and screw in the fastening screws -2- .

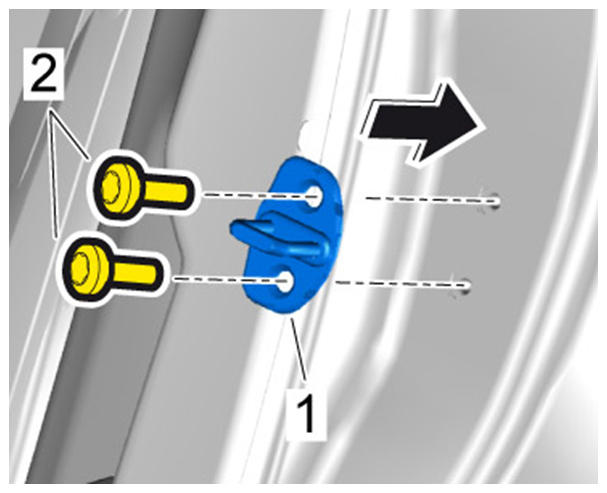

Fig 1: Installing Lock Peg
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully close vehicle door and check that the lock peg is positioned correctly with respect to the lock.
Adjust the lock peg to suit the lock as required.
Tighten fastening screws -2- to Tightening torque 20 Nm (15 ftlb.) .
Check adjustment of vehicle door and adjust it if necessary. → 585115 ADJUSTING REAR DOOR
