Removing Rear Door Lock

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Unclip mounting bracket for door lock from the door sub-frame.

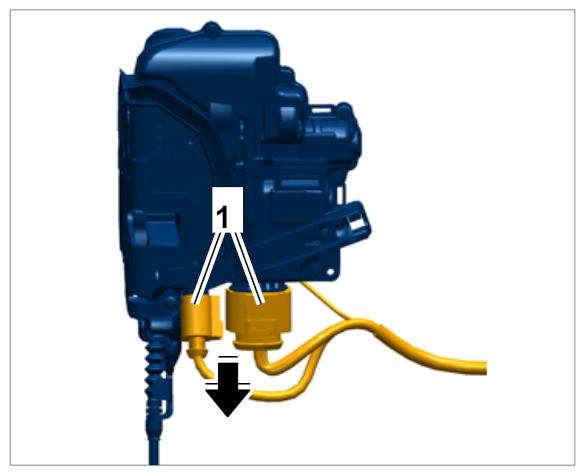

2. Release electric plug connection -1-  and disconnect connector.
   Fig 1: Releasing Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

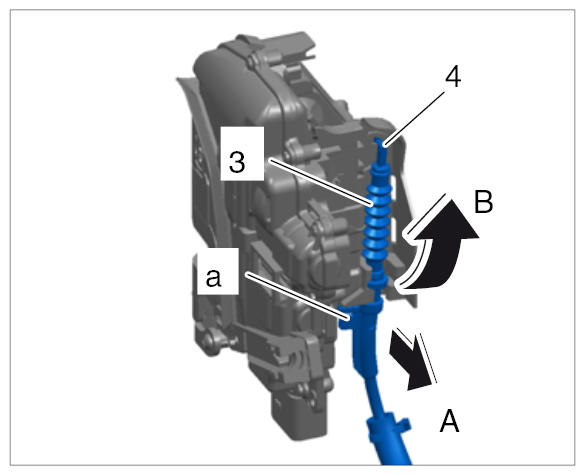

3. Disengage bowden cable in the door lock from the door lock to the inner part of the door handle.
   1. 3.1. Release bowden cable bracket -3-  (-a-  ) and unclip it -A-  .
   2. 3.2. Turn bowden cable bracket by 90° -B-  and disengage the catch -4-  .
   Fig 2: Disengaging Bowden Cable From Inner Part Of Door Handle
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Disengage bowden cable for inner actuating mechanism on the door lock. → Removing Inner Actuating Mechanism For Door Lock
5. On vehicles with Softclose (closing aid)

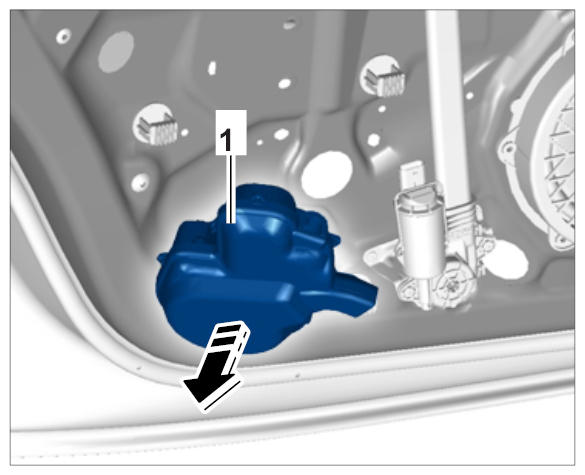

6. Remove cover on Softclose motor -1-  using a suitable tool.
   Fig 3: Removing Cover On Softclose Motor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

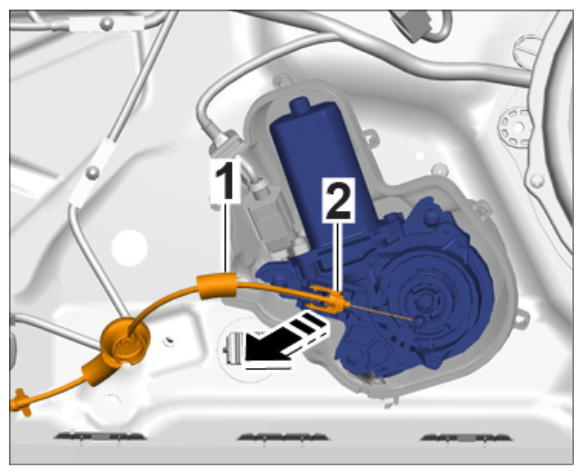

7. Pull rubber sleeve for bowden cable -1-  out of the lower cover.
   1. 7.1. Release locking lug -2-  and unclip clip from the guide.
      Fig 4: Pulling Rubber Sleeve For Bowden Cable

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

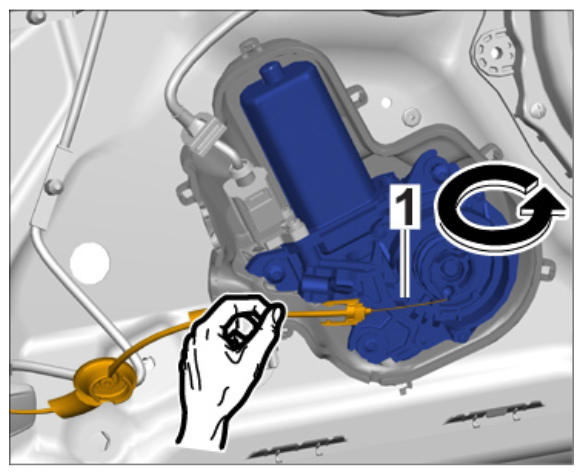

8. Guide out bowden cable -1-  and disengage it.
   Fig 5: Disengaging Bowden Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Remove door lock.
