Removing Rear Door Handle (Inner Part)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove inner part of door handle at the mounting bracket.

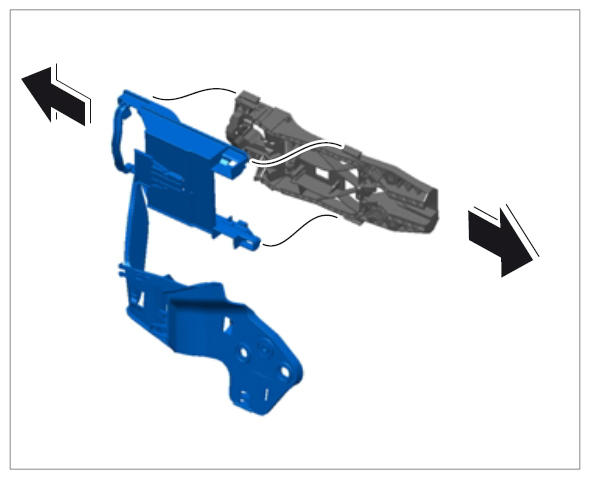

    Fig 1: Removing Mounting Bracket
    G09939534Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disengage bowden cable from the door lock at the inner part of the door handle.
    1. 2.1. Unclip bowden cable housing using a suitable tool -a-  and take it up out of the bracket.

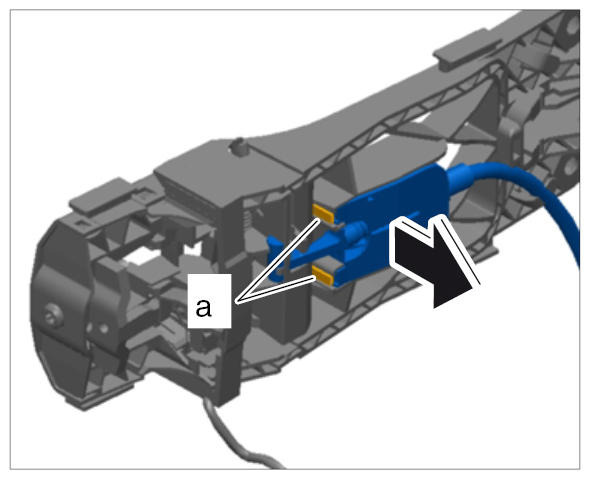

      Fig 2: Unclipping Bowden Cable Housing
      G09939535Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 2.2. Turn bowden cable catch through 90°.
    3. 2.3. Disengage bowden cable catch by pulling it upwards -A-  and remove it -B-  .

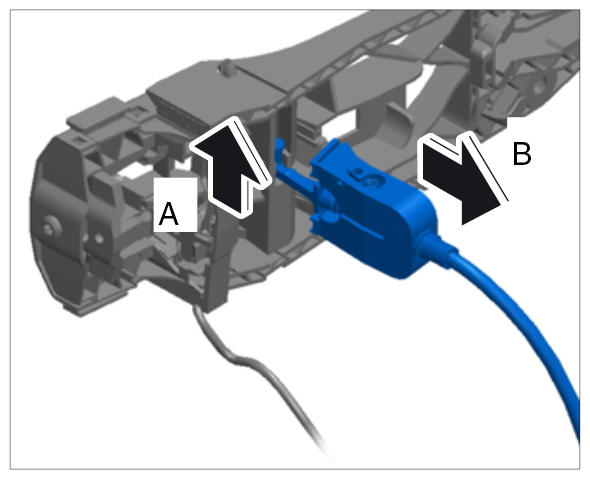

      Fig 3: Disengaging Bowden Cable Catch
      G09939536Courtesy of PORSCHE CARS NORTH AMERICA, INC.
