Removing Rear Door Handle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull off cover.

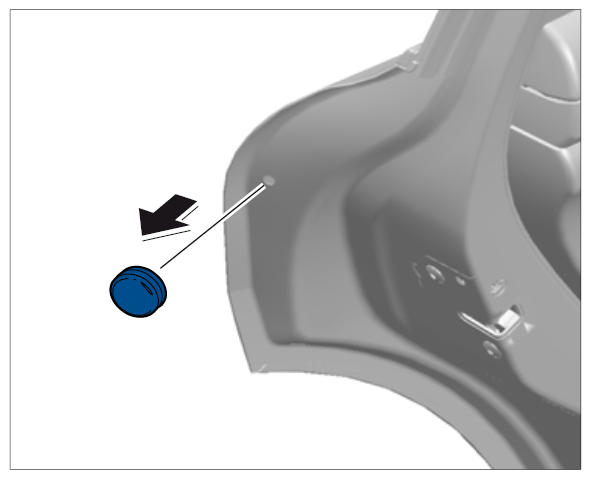

    Fig 1: Pulling Off Cover
    G09939524Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert removal and assembly tool T10389 -1-  into the rear door and pull the locking clip -2-  to the rear.

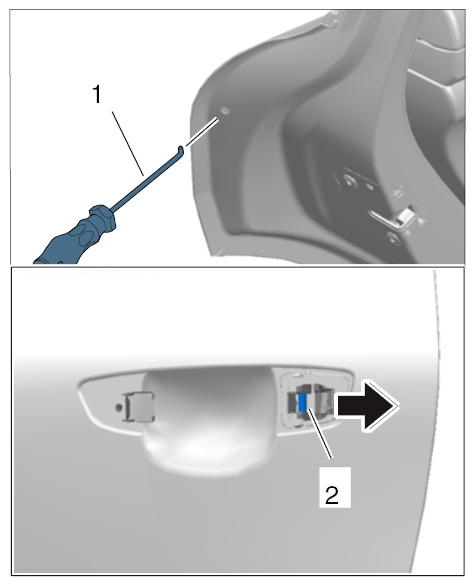

    Fig 2: Releasing Clip
    G09939525Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip rear door handle cover -3-  by pulling it outwards.

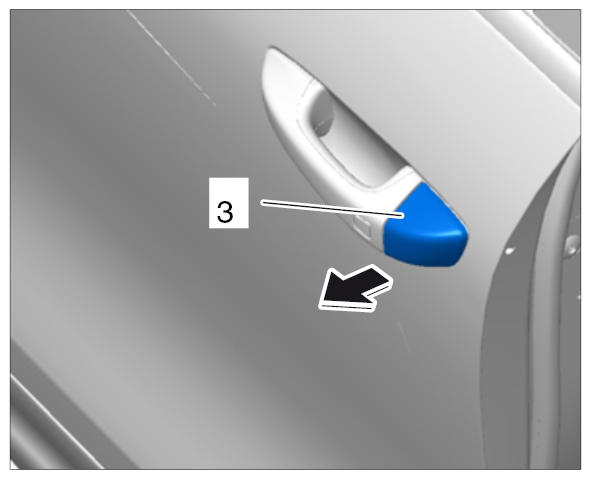

    Fig 3: Unclipping Door Handle Cover
    G09939526Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove rear door handle.
    1. 4.1. Unhook rear door handle -6-  (-B-  ) and swivel it out by 90° -A-  .
    2. 4.2. Remove rubber base -7-  and rear door handle -6-  .

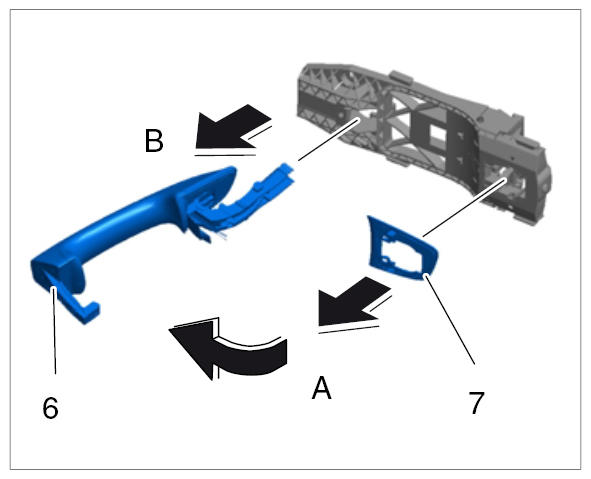

      3. Fig 4: Removing Rear Door Handle
      G09939527Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Vehicles with KESSY:  Release electric plug connection for KESSY -8-  (-a-  ) and disconnect it.

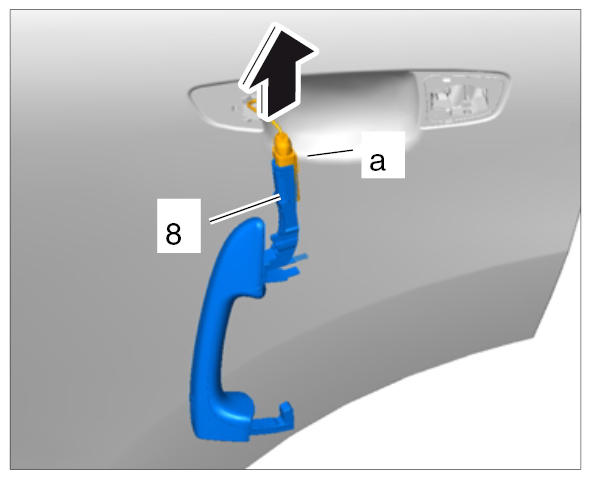

    Fig 5: Disconnecting Connector For KESSY
    G09939528Courtesy of PORSCHE CARS NORTH AMERICA, INC.
