Installing Rear Door Handle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Vehicles with KESSY:  Plug in electric plug connection for KESSY -8-  and lock it -a-  .

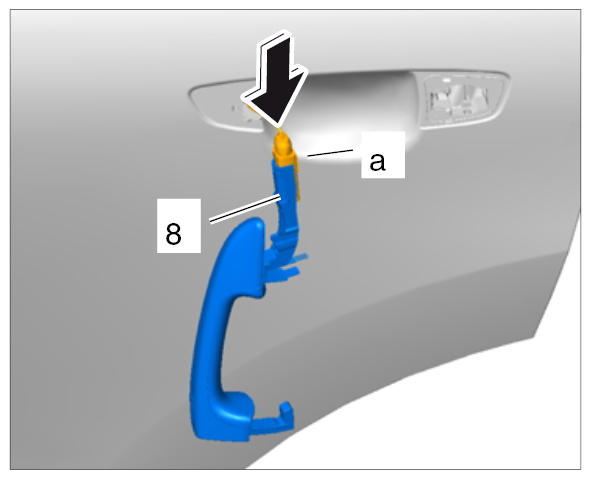

    Fig 1: Installing Connector
    G09939529Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install rear door handle.
    1. 2.1. Position rubber base -6-  .
    2. 2.2. Hook in rear door handle -B-  and swivel it inwards by 90° -A-  .
    3. 2.3. Make sure that the rubber lip is at the correct position during installation.

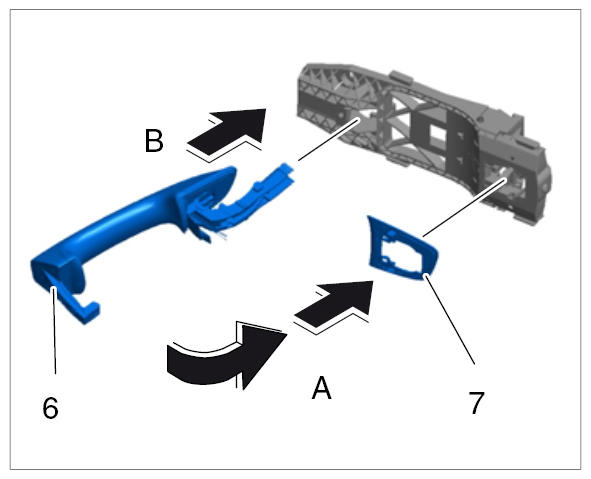

      4. Fig 2: Installing Door Handle
      G09939530Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit rear door handle cover -3-  .

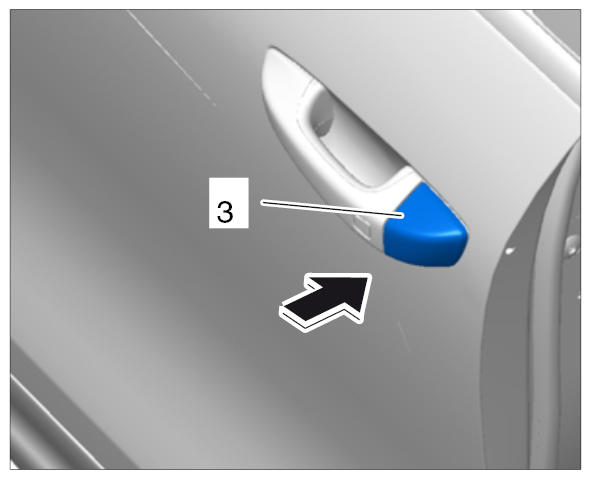

    Fig 3: Fitting Door Handle Cover
    G09939531Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Lock the supporting bow using a blunt tool (e.g. Torx 30).

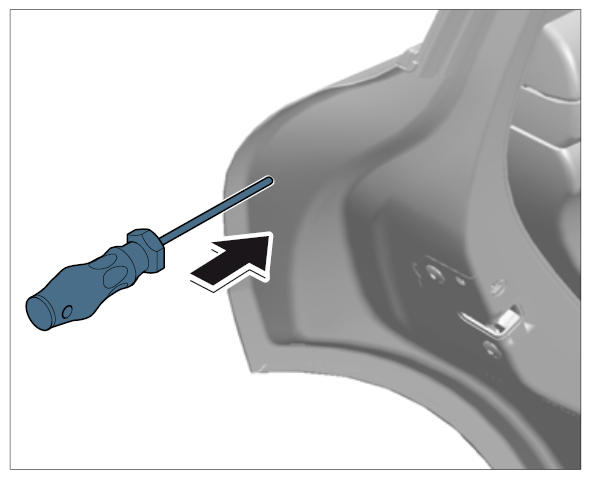

    Fig 4: Locking Support Bow
    G09939532Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Fit the cover.

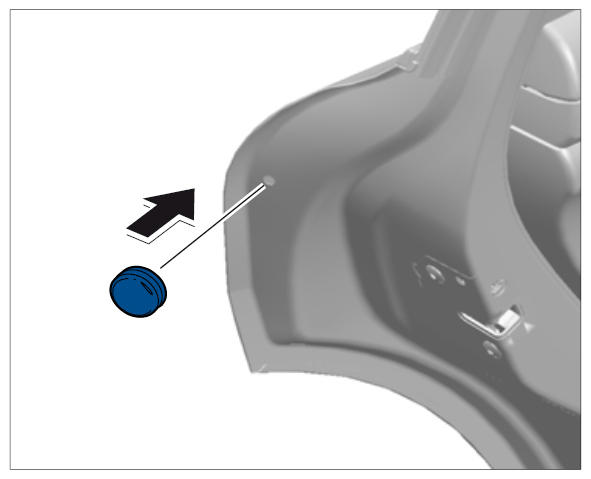

    Fig 5: Fitting Cover
    G09939533Courtesy of PORSCHE CARS NORTH AMERICA, INC.
