Installing Control Unit For Rear-End Electronics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide control unit for rear-end electronics into the bracket -arrow B-  .
  2. Plug in and lock four electric plug connections -1-  until they engage securely.

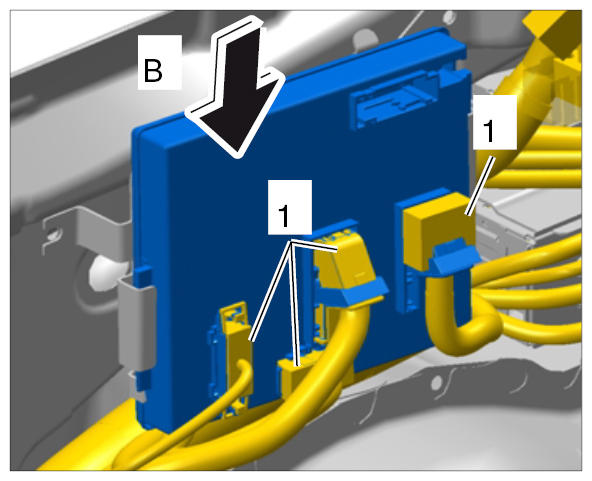

    3. Fig 1: Installing Control Unit For Rear-End Electronics
    G09939521Courtesy of PORSCHE CARS NORTH AMERICA, INC.
