Removing Switch For Central Locking System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
Information
- Some of the repair illustrations show only one side of the vehicle.
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
- These must be carried out as a mirror image of the steps shown for the front and rear.

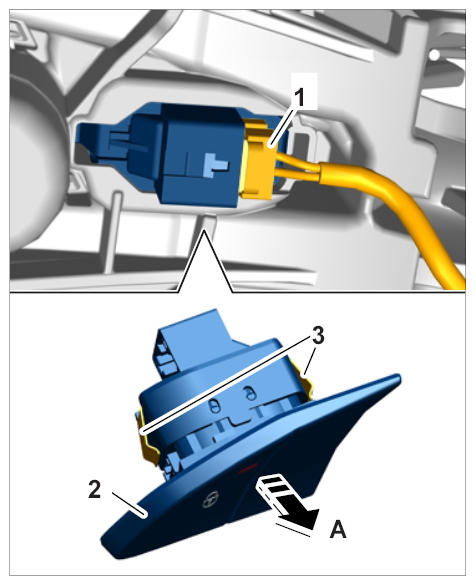

- Release and disconnect electric plug connection -1- on switch for central locking system -2- .
- Disengage switch for central locking system -2- from the spring clamps -3- and remove it -A- .
